High Thickness Steel Pipe Reducer Fittings , SS304 Flanged Eccentric Reducer

    Buy cheap High Thickness Steel Pipe Reducer Fittings , SS304 Flanged Eccentric Reducer from wholesalers

    Buy cheap High Thickness Steel Pipe Reducer Fittings , SS304 Flanged Eccentric Reducer from wholesalers
    • Buy cheap High Thickness Steel Pipe Reducer Fittings , SS304 Flanged Eccentric Reducer from wholesalers

    High Thickness Steel Pipe Reducer Fittings , SS304 Flanged Eccentric Reducer

    Ask Lasest Price
    Brand Name : ZZ
    Model Number : ASTM A403 WP304
    Certification : ISO, CE
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram, D/P, D/A, L/C
    Supply Ability : 60000 PCS Per Month
    Delivery Time : 5-20 Days
    • Product Details
    • Company Profile

    High Thickness Steel Pipe Reducer Fittings , SS304 Flanged Eccentric Reducer

    Stainless Steel Eccentric Reducer 12" x 8" Sch 10S Seamless SS 304 ASME B36.19

    Stainless Steel Eccentric Reducer

    High quality eccentric reducer is supplied in verious dimensions and best price, those stainless steel fittings are manufactured in accordance with ASME B36.19.

    Stainless Steel 304 pipe fittings have excellent corrosion resistance and demanded highly in chemicals, especially in acidic chloride environments such as those encountered in pulp and paper mills due to their versatility and excellent weld-ability.

    12 x 8 Reducer Dimensions

    Size1/2" - 60"
    Wall ThicknessSch10S, 20S, 40S, STD, XS, 80S, 100, 120, 140, 160, XXS
    StandardASME B36.19
    TypesSeamless Reducer, Welded Reducer, Concentric Reducer, Eccentric Reducer
    Stainless SteelASTM A403 WP304/304L,WP304H,WP316/316L,WP310,WP317,WP321
    Duplex SteelASTM A815 UNS S 31803, S 32205, S 32550, S 32750, S 32760
    Carbon SteelASTM A234 WPB, A860 WPHY42, 52, 60, 65, 70
    Low Temp Carbon SteelASTM A420 WPL3, WPL6, WPL9
    Alloy SteelASTM A234 WP1, WP5, WP9, WP11, WP12, WP22, WP91

    How to Calculate Pipe Reducer Weight

    • Formula: 0.02466 × S ×[ (D+d)/2-S] × H / 1000
    • S: Wall thickness
    • D: Outside diameter of the larger end
    • d: Outside diameter of the small end
    • H: End to end dimension

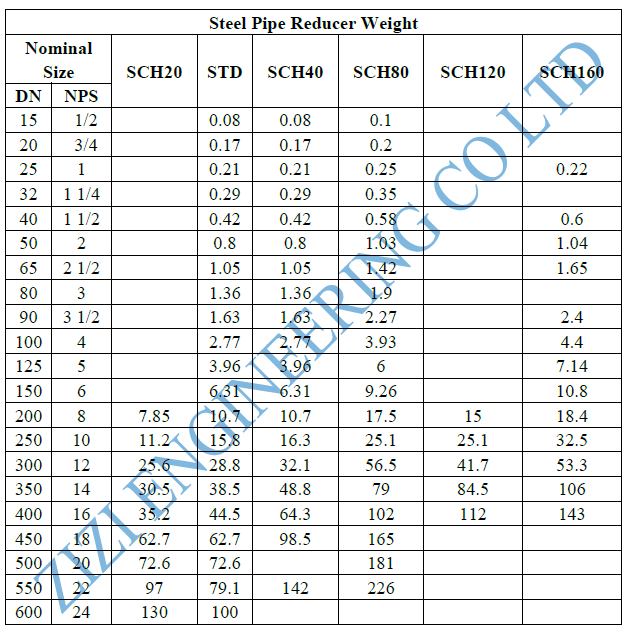

    Steel Pipe Reducer Weight

    Package of SS 304 Eccentric Reducer

    • Marked with Grade, Lot No, Size, Standard and Pressure.
    • Wrapped pipe fittings with plastic foam.
    • Packed Stainless Steel A403 WP304 Pipe Reducer into wooden cases or pallets.
    • Tagged labers on the outside of the package for easy indentification.

    Inspection of Sch 10S Pipe Reducer

    1. Visual the surface. Such as dents, die marks, porosity, undercuts.
    2. Check the marking. Such as size, material grade, pressure, heat no.
    3. Measure the size. Such as diameter, thickness, end to end.
    4. Test the chenical compositon of SS 304.

    Chemical Composition of SS 304

    GradeCMnPSSiNiMoCr
    SS3040.0820.0450.031.08-11-18-20

    Mechanical Properties of SS 304

    GradeTensile Strength (Mpa)Yield Strength (Mpa)Elongation (%)
    SS30451520520

    Advantages of Stainless Steel Buttweld Fittings

    • Attractive Price
    • Good Quality
    • Short Delivery
    • Safe Package
    • Reliable Shipment
