Liquid Reciprocating Diaphragm Pump / Automatic Diaphragm Oil Pump

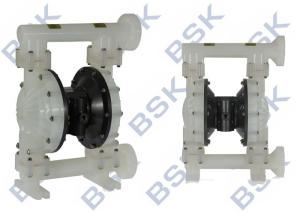

Reciprocating Diaphragm Pump General Description
The diaphragm pump offers high volume delivery even at low air
pressure and a b road range of material compatibility options
available.Refer to the model and option chart.The pump is provided
with the modularized air motor and fluid section.
The air operated diaphragm pump alternately generates the intake
fluid pressure and positive fluid pressure in the fluid chamber by
using the pressure difference in the air chamber. The ball valve
can ensure the forward flow of fluid.
Pump cycling will begin as air pressure is applied and it will
continue to pump and keep up with the demand. It will build and
maintain line pres -sure and will stop cycling once maximum line
pressure is reached (dis -pensing device closed) and will resume
pumping as needed.
| Item | Description | Unit | Reference Figure |
| 1 | Maximum air inlet pressure | Mpa | 0.83 |
| 2 | Maximum flow rate | 1/Min | 192 |
| 3 | Maximum lift | M | 70 |
| 4 | Maximum outlet pressure | Mpa | 0.83 |
| 5 | Maximum particle size | mm | 3 |
| 6 | Weight | kg | 12.3 |
| 7 | Noise level | db | ＜70 |
Reciprocating Diaphragm Pump Application
1, Poisonous, combustible and volatilizable liquids.
2, Strong acid, strong alkali liquids with corrosion
3, Tanker truck, bilk plant, load and unload of oil products
4, Pickle, fruit pulp, mashed potatoes, chocolates, etc
5, Paint, rubber, pigment and adhesives
6, Various ceramic pulp, grouting, mortar and slurry
7, Various latex, organic solvents, stuffing

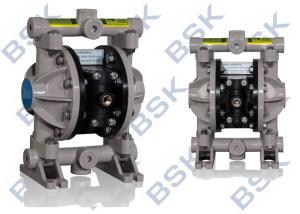

Reciprocating Diaphragm Pump Specifications
Air Diaphragm Pump
1. Non leakage
2. Good self priming performance
3. Convey all kinds of medium
4. Material:Cast steel,Alu,SS,PP
A 2 5 X X - X X X - X (model selection)
Form of pipe mouth:A-BSP B-NPT(F) C-Flange
Diaphragm material:9 – Santoprene H – Hytrel T - PTFE/Santoprene
Ball material:9 -Santoprene H – Hytre T – PTFE A - Acetal
Ball seat material:P/K –Polypropylene/Kynoar SS –Stainless Steel
Pump material: SS –Stainless Steel AL –Aluminum Alloy CI- Carbon
Steel P/K –Polypropylene/Kynoar
Maximum Applied Temperature Limits (diaphragm / ball / seal material)
Acetal ···············································40°- 150°F
(4.4- 65.5°C)
Santoprene··········································-40°- 225°F
(-40°- 107.2°C)
·················································40°- 220°F (4.4°-
104°C) Nitrile·················································10°-
180°F (-12°- 82°C)
Viton···················································-40°- 350°F
(-40°-176.6°C)
Hytrel··················································-20°-150°F
(-12°- 93°C)
Kynar····················································10°-200°F
(-28.9°- 65.5°C)
Polypropylene········································132°- 175°F
(0-79.4°C)
