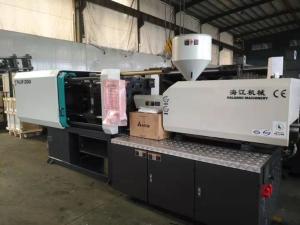

Automatic plastic safety helmet injection molding machine with
servo system
Germany DIN standard hydraulic pipe fits with seal, ensure no
leaking.
Machine lubrication adopts full-automatic type, easy and safe for
machine working life.
home appliance injection molding machine is the type of
fully-automatic machine, being provided with high efficiency, high
reliability, high speed, low noise, low power consumption and other
advantages
Machine main components adopt world famous brand, e.g.:
| Controller | Arcuchi/Porchesion(50-290T)(China) |
| Techmation(360-3000T)(Taiwan) |
| Vane pump | Albert(USA) |
| Proportional valve | HJK series Northman(TAIWAN) |
| HJK series Northman(TAIWAN) or TOKIMEC(Japan) |
| Directional valve | HNC(TAIWAN) or YUKEN(Japan) |
| Electric motor | Dongguan(Guangdong) |
| contactor | Mager(50-290T)/Schneider(China)(360-3000T) |
| High pressure hose | Fute(Ningbo) |
| Five-star hydrauhu | Dandun(China)STAFFA(UK) |
| Air breaker | LS(Korea) |
| Thermal overland relay | Schneider(China) |
| Limit switch | Omoron(Japan) |
| Lubrication pump | Automatic |
| Servo motor | SUMITOMO(Japan) |
| Servo pump | DELTA(Taiwan) |
| Servo sensor | ASHCROFT(Germany) |
Main technical parameters
| SPECIFICATION | HJF-360 |
| A | B | C | D |
| Screw diameter | mm | 60 | 65 | 70 | 75 |
| Screw L/D Ration | L/D | 22.6 | 21.2 | 19.4 | 18.5 |
| Shot size(theoretical) | cm³ | 960 | 1128 | 1306 | 1480 |
| Injection weight(PS) | g | 873 | 1026 | 1180 | 1346 |
| Injection rate | g/s | 239 | 275 | 328 | 420 |
| Injection pressure | Mpa | 213 | 183 | 160 | 146 |
| Screw speed | rpm | 0-180 |
| Clamping tonnage | KN | 3600 |
| Opening stroke | mm | 700 |
| Space between the tie bars | mm | 680*680 |
| Max.mold height | mm | 670 |
| Min.mold height | mm | 240 |
| Ejector stroke | mm | 160 |
| Ejector tonnage | KN | 62 |
| Max.pump pressure | Mpa | 16 |
| Pump motor power | KW | 37 |
| Heater power | KW | 17.25 |
| Machine dimension(L*W*H) | M | 6.3*1.9*2.4 |
| Machine weight | T | 12 |
| Oil tank capacity | L | 620 |
Characteristics
Adjustment Unit
Automatic mold height adjustment saves the time and cost during the
mold changing.
Clamping Unit
The plates were designed using FEM software,ensuring a stable and
rigid clamping system.Five point inward moving double toggle system
ensures high rigidity and precision for mould clamping and also
reducing stress and strain effects.
Hydraulic Unit
The hydraulic system using the world famous pump and control valve
can control the machine running precisely,ensuring the
precision,reliability and durability of whole machine.
Injection Unit
Dual-pillar supporting and dual-cylinder injection balance devices
ensure the stress on screw balanced during injection.Specific screw
and barrel designs are available for processing different material
requirements.
Electronically Controlled Unit
1. CPU controller and display are independent and reliable.
2. A larger color LCD screen enhances clear display and support
multi-language compatibility.
3. The control system also support remote monitor.In the event of a
control problems,the machine can be connected to internet through a
special interface.Inject service can realize remote fault diagnosis
and maintenance.
4. A screen saver function extends the LCD life.
5. Ultra bright LED is provided for input and output point
inspection.Proving convenient indication of the machine’s operation
and machine service.
6. A data hardware lock is provided to prevent unauthorized people
from effecting the machines performance.
7. Closed loop PID barrel temperature control.
8. Dust and waterproof control cabinets provide a neat and tidy
enclosure all electric control components.
Shipping and Payment
| Product Name | 138 Injection molding machine |
| Packing | Export standard package |
| MOQ | 1 set |
| FOB price | Please contact for new price |
| Delivery time | 25-60days |
| FOB port | Ningbo |
| Payment terms | T/T,L/C at sight |
SPARE PARTS(FOR FREE)
| 1.mold clamping with bolts:8pcs | 2.Nozzle:1pc |
| 3.Toolbox:1set | 4.heating ring:2pcs |
| 5.lubrication oil:1 bucket | 6.limit switch:2pcs |
| 7.hexagon wrench:1set | 8.thermocouple:2pcs |
| 9.seal ring:2pcs | 10.machine foot pad:6pcs |
| 11.vise:1pc | 12.power socket for auxiliary machine:2pcs |
| 13.wrench:1pc | 14.screwdriver:2pcs |
