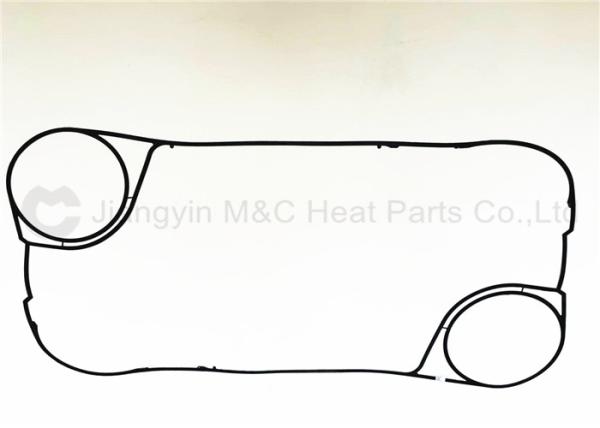

Refurbished Marine Heat Exchanger Gaskets GX85/GX085 Lightweight
Non Rust Reliable
Function
Plate heat exchanger is a series of certain the shape of corrugated
sheet metal folding effectively and become a new type of heat
exchanger.
Provide a thin rectangular channel, between various plate heat
through half a piece of communication. Plate heat exchanger is a
liquid - liquid, liquid - steam to heat the inclination of
communication equipment.
It has in high thermal efficiency, heat lose small, compact
structure, light and convenience of land area is small, equipment
cleaning, widely used, use of long life and other characteristics.
Under the same pressure lose, its heat transfer coefficient is
higher than tube heat exchange device for 3 to 5 times, which
covers an area of over one third of the tubular heat exchanger,
heat recovery can be as high as 90% above.
Production Introduction
Basic Information
Plate heat exchanger gasket is one of the important parts of plate
heat exchanger,which can produce plastic deformation and have
certain strength.
M&C’s gaskets are customized to fit the customer’s working
conditions and are manufactured by a professional factory in a
specified size.
The contact width between the high pressure gasket and the sealing
surface is very narrow ( line contact).
Sealing Principle
The corrugated plate is pasted with sealing gasket, which is
designed to double seal structure and has signal hole. When the
medium leaks from the first seal, it can leak out from the signal
hole, and the problem can be detected and solved as soon as
possible, without causing the mixing of the two media. Sealing
gasket according to different media and operation temperature to
choose different types of gaskets.
Brand Name: M&C
Material: NBR,EPDM,HNBR,VITON,FKM
Advantage: Produce plastic deformation and have certain strength
Gasket Feature
- Simple style and good sealing
- Widely used and adaptable
- Resistant to corrosion and high temperature
- Easy to disassemble and maintain
Parameters
| Gasket Material | Temperature Range ( ℃) | Hardness | Available Medium |
| NBR | -20 to 110 | -75+/-3 | Water, Oil, Acid etc |
| EPDM | -30 to 150 | 80+/-5 | Steam, Ammonia, Acid etc |
| NBR-HT | -30 to 160 | 85+/-5 | Mineral Oil, Thermal Oil |
| EPDM-HT | -30 to 180 | 85+/-5 | High temperature water |
| TFEP | -20 to 180 | 80+/-5 | Acid,Glycol,Chloride |
| FPM | -55 to 220 | 80+/-5 | Acid,Glycol,Chloride |
When Using The Plate Heat Exchanger?
Heat exchanger is the commonly used equipment in many different
industries, it has many different application, so it has a
different market.
Compared with the shell and tube type device, plate heat exchanger
can be your best heat exchanger technology and business solutions.
As long as the product operating temperature and pressure is less
than 180 degrees (356 degrees Fahrenheit) or 27.5 mpa (400 psi),
plate heat exchanger is worth of your choice, especially if you
need the following requirements:
1, more heat transfer, or you are extension assessment;
2, on the market the most compact heat exchanger;
3, the most economical solution heat exchanger;
4, looking for can withstand the corrosion of high alloy materials;
5, in order to save energy and recycle heat from waste water;
6, can look for a long time the thermal load of work or close to
the temperature of solution;
Especially if you are not sure of heat load, or you are need more
heat transfer capacity, flexible modular plate heat exchanger will
be in order to save precious capital.
Payment And Shipping
Payment
Standard payment terms: 100% in advance.
Pay 30% deposit in advance, 70% balance before shipment.
More payment terms could be provided (T/T, WESTERN UNION)
Shipping
Delivery time: 5-8 working days after payment receipt confirmed
(based on actual quantity)
Packing: standard export packing, or customized packing as your
request.
Professional goods shipping forwarder.
