    New Condition Electric Geotechnical Drill Rig For Water Borehole Drilling

    Ask Lasest Price
    Brand Name : JINZHOU SHITAN
    Model Number : ST-200
    Certification : ISO
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 2000 sets per year
    Delivery Time : 7-12 days
    • Product Details
    • Company Profile

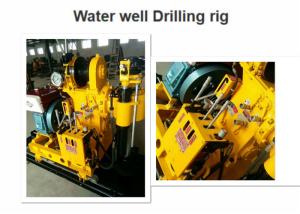

    New Condition Electric Geotechnical Drill Rig For Water Borehole Drilling

    On Sale Price Available Core Drilling Rig for Water Borehole Drilling


    Product Feature:


    1. Has a hydraulic feed mechanism, improve drilling efficiency, reduce labor intensity.


    2. Rig is equipped with ball card on the clamping mechanism and Six party active drill rod, can be implemented without shutdown rod, high efficiency, easy operation, safe and reliable.


    3. With bottom hole pressure gauge indicates the pressure, easy to grasp hole situation.


    4. Handle centralized, easy to operate.


    5. Compact rig structure, small size, light weight, decomposition and strong, easy to move, adapted to the plains or mountain areas.


    Product Parameter:


    Basic Data

    Drill hole diameter: 75,91,110,150,200 mm

    Drilling depth: 200,150,100,50m

    Drill diameter: 50 mm (or 42 thick)

    Drilling angle: 0 °-90 °

    Rig Dimensions 1450*950*1350 mm

    rig weight (except power machine): 550 Kg

    Rotary Device

    vertical speed (positive, reverse the 4 files):71,142,310,620 r / min

    vertical stroke: 450 mm

    Vertical load moves to the upper maximum speed: 0.05 m / s

    maximum speed downward vertical load: 0.067 m / s

    vertical maximum feed force: 15 KN

    Maximum vertical lifting force: 25 KN

    vertical maximum output torque: 1.6 KN.m

    Windlass

    The maximum hoist lifting capacity (single rope): 20 KN

    reel speed: 16,32,70,140 r / min

    Roll peripheral speed (second floor): 0.17,0.34,0.73,1.46 m / s

    Drum diameter:165 mm

    wire rope diameter:11 mm

    Rope capacity: 35m

    Brake diameter: 280mm

    brake width: 55mm

    Pumptype: gear pump, Model: YBC-12/80, rated pressure 8 MPa, flow rate 8 ml / r, rated speed of 1500 r / min
    Power Machine

    Engine Type: ZS1115-M, rated power: 16.2KW, rated speed: 2200 r / min

    Motor Type: Y160M-4 Rated Power: 15 KW rated speed: 1460 r / min
