    Turning Rail Ladle Transfer Cart With LED Display Automatic Control Custom Size

    Ask Lasest Price
    Brand Name : BEFANBY
    Model Number : KPX-30T
    Certification : CE,SGS,ISO9001
    Price : Negotiation
    Payment Terms : 30% deposit by T/T in advance, 70%balance by T/T before dispatch
    Supply Ability : 600 sets one year
    Delivery Time : 50-60 days as usual delivery,40-50days for urgent delivery
    • Product Details
    • Company Profile

    Turning Rail Ladle Transfer Cart With LED Display Automatic Control Custom Size

    Turning rail ladle transfer bogie with LED display automatic control

    Working principle of ladle transfer bogie


    The ladle transfer bogie is powered by battery. The battery supply power to the DC motor, which is installed inside of cart body. Through the order of start, stop, forward, back, speed governing, etc, electrical control system command the order to DC motor to drive rail ladle car working.


    Features of ladle transfer bogie
    • Can be add hydraulic lifting device;
    • Can be add dumping device;
    • Electric weighing scale and LED display can be installed;
    • Can run on straight rails or arc-rail, turning rails
    • Low failure rate, working steady;
    • High efficiency, low energy consumption,
    • Reasonable design, reliable operation.
    Main parts of ladle transfer bogie
    Casting wheel Electric Control Box
    Charger Battery
    Sound & Light Alarm Remote control
    Application of ladle transfer bogie

    The steel ladle transfer bogie is commonly applied in steel industry or metallurgy industry to transfer liquid steel, steel ladle, steel scraps, etc. It can be used within workshop handling or between workshops.


    In order to ensure the platform and driving system damaged by high-temperature, there is firebrick laid on the platform of the ladle. Or the driving system is protected by special design.


    In order to realise the lifting and loading function, the additional device can be added, suan as hydraulic lifting device, dumping device, rotary device, etc.


    Technical parameters of transfer bogie
    Model
    KPX-2TKPX-10TKPX-20TKPX-30TKPX-50TKPX-63TKPX-150T
    Rated load (T)21020305063150
    Table sizelength(L)20003600400045005500560010000
    Width(W)1500200022002200250025003000
    Height(H)4505005506006507001200
    Wheel Base (mm)1200260028003200420043007000
    Rail Inner Gauge (mm)1200143514351435143514352000
    Wheel Diameter(mm)Φ270Φ300Φ350Φ400Φ500Φ600Φ600
    Wheel Quantity4444448
    Ground Clearance (mm)50505050507575
    Running speed (min)0-250-250-200-200-200-200-18
    Motor Power (Kw)11.62.23.556.315
    Battery Capacity(Ah)180160180250330400600
    Battery Voltage(V)24484848484872
    Running Time When Full Load4.324.843.53.332.9
    Running Distance for one Charge(Km)6.57.24.84.243.63.2
    Max Wheel Load (KN)14.442.677.7110.4174221.4265.2
    Reference Weight (t)2.84.25.96.8810.826.8
    Recommended Rail ModelP15P18P24P38P43P50QU100

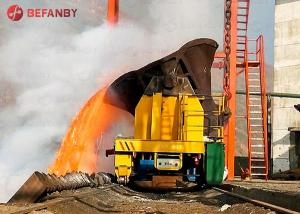

    The applying site in one of our client’s factory, they use the ladle transfer bogie to transfer liquid steel ladle from production line to warehouse. In order to improve the working efficiency, the use two sets ladle cars for alternative using.
    Delivery of turning rail ladle transfer bogie
    Generally the rail bogie is packed by high quality plastic cloth, if the platform is small, it will put in a container, if the platform is large, it will put in a frame rack.

    Customer visit in our factory

    ladle car ladle car


    Spanish client India client


    Quality control of rail bogie


    Other rail handling car in BEFANBY company


    FAQ


    1. Q: What is the capacity of the ladle transfer bogie?

    A: The capacity can be customized, the max. Load capacity can reach to 300 tons.

    2. Q: What temperature the transfer trolley on railway can bearing? 500 degree or higher?

    A: The environment temperature can reach 200 degree, and the steel ladle temperature can reach to 1500 degree.

    3. Q: What is the working speed of the ladle car?

    A: The standard running speed is 20m/min.


    Our company and our team



    Xinxiang Hundred Percent Electrical And Mechanical Co., Ltd is a professional manufacturer and exporter of material handling equipment with more than 16 years' experience, and our product has exported to more than 50 countries like America, South Africa, Turkey, Bangladesh...


    Our Advantage



    Our service

    • Our commitment: The load bearing safety factor of the trolley is no less than 120%.
    • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
    • 16 hours engineering service and 24 hours internet service for our customers.
    • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
    • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
