Long Life Non Driving Axle Truck Spare Parts German Type Drum Wheel Axle

    Buy cheap Long Life Non Driving Axle Truck Spare Parts German Type Drum Wheel Axle from wholesalers

    Buy cheap Long Life Non Driving Axle Truck Spare Parts German Type Drum Wheel Axle from wholesalers
    • Buy cheap Long Life Non Driving Axle Truck Spare Parts German Type Drum Wheel Axle from wholesalers

    Long Life Non Driving Axle Truck Spare Parts German Type Drum Wheel Axle

    Ask Lasest Price
    Brand Name : GET
    Model Number : Truck Trailer Axles , Non-driving axle , Drum Axles , German Type Drum Wheel Axle 8T-20T
    Certification : ADR,DOT
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000 UNITS / MONTH
    Delivery Time : 10 WORKING DAYS
    • Product Details
    • Company Profile

    Long Life Non Driving Axle Truck Spare Parts German Type Drum Wheel Axle

    Truck Trailer Axles , Non-driving axle , Drum Axles , German Type Drum Wheel Axle 8T-20T


    Truck Trailer Axles , Non-driving axle , Drum Axles , German Type Drum Wheel Axle 8T-20T

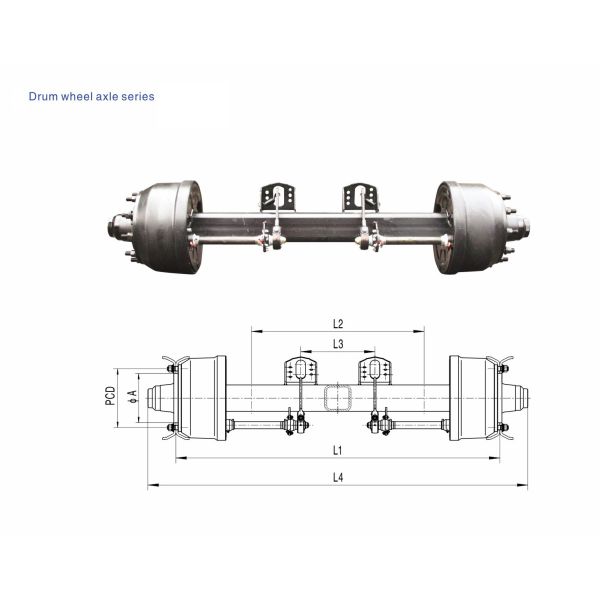

    Type of axxlesDrum wheel Axle
    German axles contain drum wheel axle series and spoke wheel axle series.
    Optional track length available
    Optional ABS and automatic slack adjuster available.
    Drum Wheel Trailer Axle Capacity:8T–20T
    Track of Drum Wheel Trailer Axle1840MM (size are available)
    Brake of Drum Wheel Trailer Axle420*200MM (size are available)
    Drum Wheel Trailer Axle Beam150*150MM (Square) (size are available)
    Drum Wheel Trailer Axle Beam Thickness:10MM-25MM
    Our German type in–board axle is made of high intensity alloy steel with excellent performance:
    Features:
    1. Unique one-piece, special heat-treated low-alloy steel axle beam offer more stability greater capacity and lighter weight. It is a world-class technology.
    2. Integral P type swage straight spindle or tapered spindle with induction-hardened bearing journals -----provide superior fatigue capability.
    3.Spider Camshaft and anchor pin bores are machined with reference to the spindle after the welding operation ---increase stability and braking performance
    4.XEM OR Q GP brake kits with heavy duty brake return spring.
    5. High performance premium non-asbestos brake linings-----extend service life.
    6. Improved seal at camshafts-----protect the brake drums from the grease lubricant more safety
    7.New 100% tight fit hub cap with additional O ring-----provide optimum seal performance.
    8.Grease lubricant is supplied by SHELL and EXXON MOBIL.
    9.Axles meet USA FMVSS-121 requirements and Australian ADR 38.
    German Type AlxesContain in-board axle series,out-board axle series,spoke wheel axle series,car transport trailer axle series and small axle series.
    Axle has two different types,the stronger axle and one-piece axle.The former weight is about 5-20kg more than the one-piece axle.

    Model105(km/h) Max. Capacity (kg)"S" Cam Brake Seriesφ x Width (mm)Track TR (mm)Spring Seat Installation LM (mm)Axle Beam (mm)Center distance of chamber GM (mm)Studs (mm)P.C.D. (mm)φ H (mm)Total Length LP (mm)Recommended WheelWeight
    GET09W10G9,000S 300×2001950≥1100□12024710xM22x1.5 ISO225176~22356.50V-15290
    GET10W11G10,000S 420×1801840≥980□12042110xM22x1.5 ISO335281~23807.50V-20377
    GET10K11G10,000S 420×1901840≥980□12742110xM22x1.5 ISO335281~23907.50V-20363
    GET10F11G10,000S 420×1801840≥980□15042110xM22x1.5 ISO335281~23907.50V-20360
    GET12F11G12,000S 420×1801840≥980□15042110xM22x1.5 ISO335281~21607.50V-20373
    GET14F11G14,000S 420×2001840≥900□15042710xM22x1.5 ISO335281~21908.00V-20404
    GET16F11G16,000S 420×2001840≥900□15024310xM22x1.5 ISO335281~22508.5V-20466
    GET16F16G16000S 420×2001855≥900□15024310xM22x2 ISO335281~22508.5V-20466
    GET18F11G16,000S 420×2201840≥900□15026210xM22x1.5 ISO335281~22458.5V-20478
    GET18F16G18,000S 420×2201855≥900□15026210xM22x2 ISO335281~22458.5V-20478
