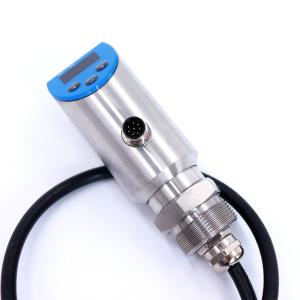

    Normally Closed RS485 Electronic Digital Level Switch 0-20mA RS485 Output

    Ask Lasest Price
    Brand Name : WNK
    Model Number : WNKSLS
    Certification : CE
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 2000 pieces per week
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    Normally Closed RS485 Electronic Digital Level Switch 0-20mA RS485 Output

    OLED NPN PNP Smart Electronic Level Switch 0-20mA RS485 Output

    1. Liquid and oil media level measurement
    2. Switching points settable
    3. Switching can be set normally open / normally closed
    4. Analog output span settable
    5. High light switch indicating
    6. OLED self-luminous display
    7. Display turnable 180°
    8. Housing with electrical connection against process connection rotatable 330°
    9. Media density settable
    Smart Electronic Level Switch with OLED Display
    Model No.
    SLS
    Measuring range
    0…1mH2O to 100mH2O
    Accuracy
    ≤0.5%FS
    Supply power
    12...30VDC
    Temperature error within rated temp range
    ±0.02%FS/℃ (Zero/full span)
    Long-term stability
    ±0.3%FS/year
    Analog output accuracy
    ±0.2%FS
    Output configurations
    switching+voltage+ communication: 2×PNP + 0V~5VDC/10VDC + MODBUS
    switching+current+ communication: 2×PNP + 0mA/4mA~20Madc + MODBUS
    Switching current
    1.0A(Max.)
    Switching type
    normally open , normally closed
    Switching respond time
    <10ms
    Switching delay
    0.00s~1000.0s
    Switching motion mode
    delay or windows mode
    Analog signal output and maximum ohmic load RL
    Current output: 0/4…20mA,20…4/0mA RL≤0.5kΩ
    Voltage output: 0…5/10V,5/10…0V RL>10kΩ
    Screen display
    OLED
    Switching indicator
    2X red LED
    Displaying pressure units
    psi,bar,mbar,Pa,kPa,MPa
    Working temperature
    -30℃~80℃
    Media temperature
    -30℃~80℃
    Storage temperature
    -40℃~80℃
    Electromagnetism compatible
    GB/T 17626.2/3/4-2006
    Shock resistance
    ≤10g/10Hz...500Hz(IEC 60068-2-6-2007)
    Vibration resistance
    ≤50g/11ms(IEC 60068-2-27-2008)
    IP rating
    IP65
    Hot Product






    FAQ

    Q: Are you trading company or manufacturer ?

    A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

    Q: What's your quality control system?

    A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

    Q: What is the warranty of your products?

    A: 12 month from shipment date, for non-man-made damages.

    Q: Shipping and Delivery

    A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
    Large orders are recommended to ship by sea.
