    3.5 V Custom Size 7 Segment Lcd Display TN Lcd Module For Instrument

    Ask Lasest Price
    Brand Name : Fangsheng
    Model Number : FTPN0005MP01
    Certification : ISO9001:2015
    Price : Negotiation
    Payment Terms : T/T , Western Union , Paypal , Credit Card , D/A , D/P , L/C
    Supply Ability : 200K Sets / Month
    Delivery Time : 7-10 Working Days
    • Product Details
    • Company Profile

    3.5 V Custom Size 7 Segment Lcd Display TN Lcd Module For Instrument

    Factory Price Custom Size 7 Segment Lcd Display TN Lcd Module For Instrument​

    A. Specifications:

    ITEMCONTENTDESCRIPTION
    1Lcd TypeTN Lcd Display
    2Outline SizeCustom , 23 (W) * 10 ( H ) mm
    3VA SizeCustom , 20 ( W ) * 6 ( H ) mm
    4Viewing Direction6 O ' clock
    5Voltage3.5V
    6Display ModePositive
    7Polarizer ModeTransmissive
    8BacklightWhite
    9Drive Method1 / 4 Duty , 1 / 3 Bias
    10ContactorPin

    B. Custom TN, HTN, VA, STN, FSTN series LCD Display

    How to choose LCD type?
    d.1.Usually,TN LCD is widely using, such as power meter LCD, telephone LCD, calculator LCD, electric cooker LCD etc. TN LCD is cheapest , but viewing angle is narrow.
    d.2.HTN LCD is better than TN LCD. Display result of HTN positive LCD is the same as TN positive LCD.But viewing angle is wider than TN. Unit price of HTN LCD is close to TN LCD.
    d.3. STN LCD is very excellent LCD. It has a wide viewing angle. Usually STN LCD is used in high-end equipments or display content too much!
    STN LCD not only can make segment LCD,but also can make dot matrix LCD.
    Unit price of STN LCD is higher than HTN LC
    D.
    d.4.FSTN LCD is one of the best LCD in monochrome LCD field. Display content even can be seen in the sunshine. Display result of FSTN positive LCD is similar with TN LCD,but viewing angle is much wider than TN LCD's.
    d.5.VA LCD is a new LCD type. It has high contrast and wide viewing angle. In general,VA LCD has a excellent display result.If you want a wonderful display result,VA LCD will be your best choice.
    d.6.Price of HTN is little high than TN, but low than STN, VA and FSTN.

    Our Certificates:
    1. GB / T19001-2016 idt ISO9001:2015
    2. CE & ROHS
    3. SGS of LCD Display

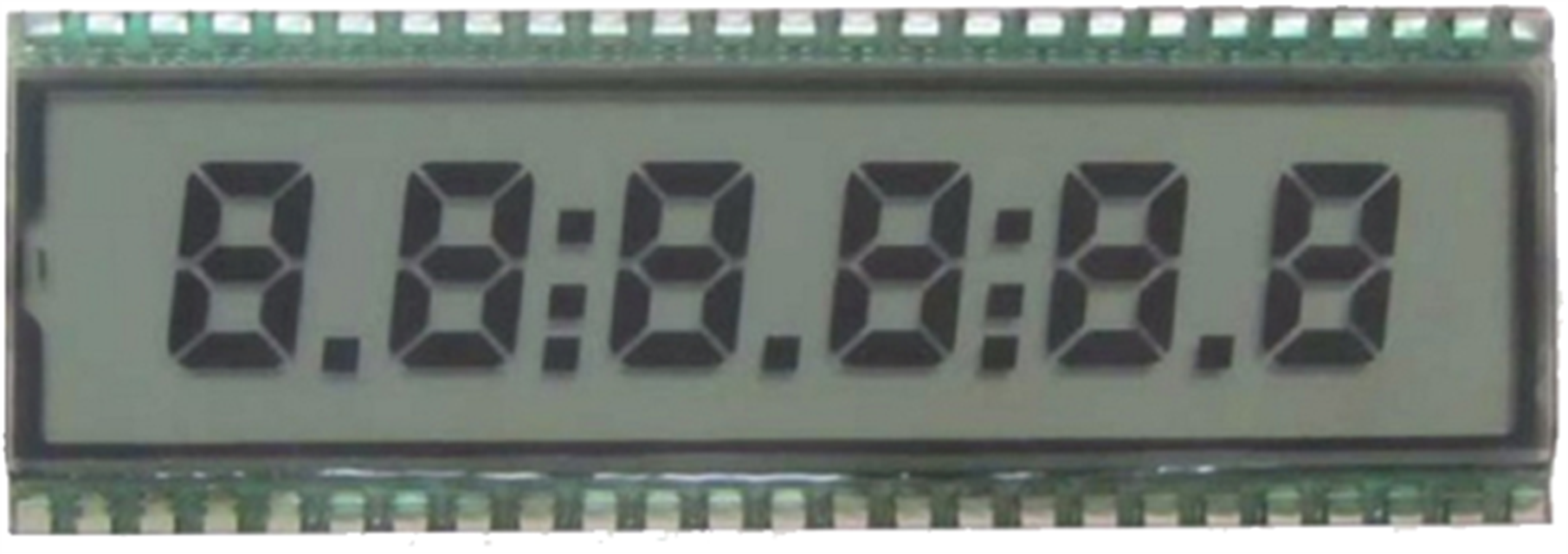

    C. Product Details:

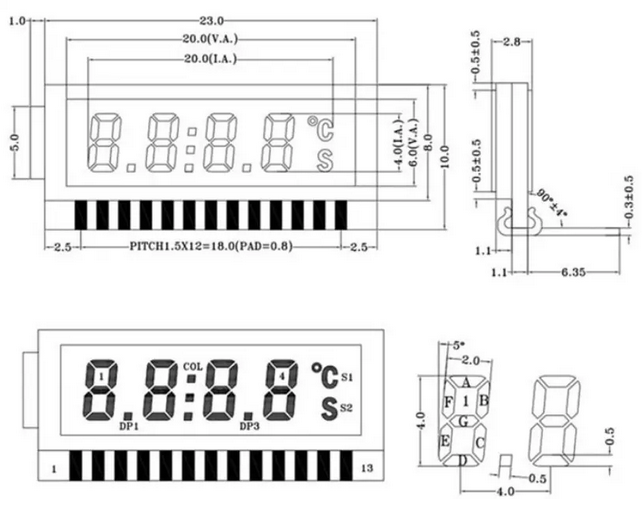

    D.Drawing Details:


    E. Our Advantages:

    Various Production Line : We provide a wide range of lcd led displays, hot smart products, promotional gifts for your customers, everything we offered are easilly customized with your logo or your company information for advertising them.


    F. FAQ

    1.Q: Are you manufactory or trade company?
    We are factory located in Dongguan and ZheJiang .
    2.Q: How can I get the samples?
    A: Send inquiry --Offer quotation --Confirm quotation & pay tooling charge -- Provide drawing -- confirm drawing -- make tooling & samples -- Samples finished -- Delivery via freight or sea collect.
    3.Q: How long can I expect to get the sample?
    A:Contour drawing: 2-3 days Sample time: 10-15 business days
    4.Q:Will you offer free sample?
    A: Yes, we usually provide 1-3 pcs free samples, you just need to pay the tooling charge.
    5.Q: Can you design the lcd in acccordance with our demand?
    A:Sure.We will give you the best tooling charge.
    6.Q:How to place orders ?
    A:If you confirm samples ok, Please send us your purchase order by Email or Fax , then we will send you an Invoice for deposit payment. We need to know the following information of your order.
    1)Product information-Quantity,part number
    2)Delivery time required.
    3)Shipping information-Company name and address with post code,Phone&Fax number,Destination sea port.
    4)Forwarder's contact details if you have any in China.
    7.Q:How long of mass production ?
    A: 25-30 business days. It depends on different order quantities and part number.
