    CE Ration Packing Controller For 25 Kg Bulk Bag Powder Packing Machine

    Ask Lasest Price
    Brand Name : Supmeter
    Model Number : BST106-B66(A)
    Certification : CE
    Price : 270-490usd/pcs
    Payment Terms : T/T, Western Union
    Supply Ability : 2000pcs/month
    Delivery Time : 3-10 working days
    MOQ : 1pcs
    • Product Details
    • Company Profile

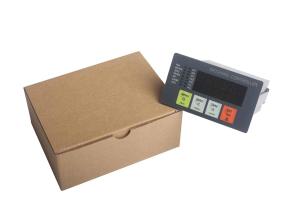

    CE Ration Packing Controller For 25 Kg Bulk Bag Powder Packing Machine

    Ration Packing Weighing Controller for 25 kg Automatic Bulk Bag Packaging Powder Packing Machine


    Main Features:

    • Suitable for Ration Packing Scale. Optional Application Modes: Single-hopper-weighing Mode [Single-scale Mode], Double-hopper-weighing Mode [Double-scale Mode] and Bag-weighing Mode with Auto Bag-releasing or Manual Bag-releasing.
    • EMC design with high anti-jamming capability, suitable for industrial environment.
    • 32-bit ARM CPU with 48MHz clock & higher arithmetic speed.
    • 6+8 Red LED digital tubes for English character and digit display.
    • 4-key English keypad.
    • Menu&Shortcut mode operation with key tone.
    • 24-bit High-precision and high-speed A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 400Hz.
    • Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.
    • Max. Connection Quantity: 4 Loadcells (350Ω).
    • Auto Zero Initial Calibration after Power-on, Auto Zero Tracking, Zero Fine Adjustment, Zero Calibration and Load Calibration functions available.
    • Optional Data Calibration function.
    • Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing functions available.
    • 6 Normally open switch inputs [DI] and 8 normally open transistor switch outputs [DO].
    • Optional ‘High/Medium/Low Speed Feed’ DOs for feeding control. Optional Low-speed Feeding Modes: Continuous Feeding Mode and Inching Feeding Mode.
    • 1 Optional and definable analog signal AO[4~20mA] for weight signal output or ‘High/Medium/Low Speed Feed’ control.
    • Optional ‘Fall Value Auto Correction’ function.
    • Optional ‘Auto Pause for Deviation Alarm’ function.
    • Optional ‘Target Batch Control’ function [With Target Batch Count or Target Batch Weight finished, the packing process will stop automatically].
    • 2 Communication ports [RS232&RS485] for connecting Host IPC/PLC and LED Remote Display.
    • With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations.
    DI/DO Function Definition
    CN1 [DI]
    No.PinSignal NameDescription
    1COMCOMDI Common Terminal [DC-].
    2DI1AUTO

    Auto/Manual.

    ON: Auto state.

    OFF: Manual state / Emergency Stop.

    3DI2START

    Start/Dev.Ack [Deviation Alarm Acknowledge]

    In running process: Dev.Ack.

    Pause state: Dev.Ack & Recover Running.

    OFF→ON→OFF.

    4DI3BAG_I

    Bag-clamp/release Request.

    OFF→ON→OFF.

    Slave Controller of Double-hopper-weighing Mode: Unused.
    5DI4DUMP_I

    Hopper-weighing Mode: Manual Dump.

    Valid at Manual state.

    ON: Manual Dump; OFF: Stop.

    Bag-weighing Mode: Unused.
    6DI5TARE

    Single-hopper-weighing Mode: Manual Tare.

    Bag-weighing Mode: Manual Tare.

    OFF→ON→OFF.

    HDSK_IHost Controller of Double-hopper-weighing Mode: Handshaking Signal from Slave Controller.
    Slave Controller of Double-hopper-weighing Mode: Unused.
    7DI6SP3_I

    Manual SP3 Re-feed.

    Valid at Manual state and Auto-pause state with Negative Deviation Alarm.

    ON: Start SP3 Low-speed Feeding.

    OFF: Stop SP3 Low-speed Feeding.
