    Customized Size Flexographic Printing Machine With Magnetic Tension Control System

    Ask Lasest Price
    Brand Name : AllWell
    Model Number : YT-41200
    Price : USD16,000/Set
    Payment Terms : L/C, D/P, T/T
    Supply Ability : 30 Sets/Month
    Delivery Time : 20 Work Days
    • Product Details
    • Company Profile

    Customized Size Flexographic Printing Machine With Magnetic Tension Control System

    YT-41200 Non Woven Flexo Printing Machine


    Product Application

    YT-41200/41400/41600 Non Woven Flexographic Printing Machines

    This machine is ideal equipment for non woven fabric printing. Adopt rubber plate or resin plate to printing non woven fabric with water-based Ink. More eco friendly and machine using automatic magnetic tension control system to ensure uniform tension. roll to roll printing supply more higher effective capacity.


    Main Technical Variables
    TypeYT-41200YT-41400YT-41600
    Printing Width1160MM1360MM1560MM
    Printing Thickness100-940MM100-940MM100-940MM
    Plate Thickness2.38 MM2.38 MM2.38 MM
    Speed10-50M/MIN10-50M/MIN10-50M/MIN
    Overall Size4500X2200X25004500X2400X25004500X2600X2500

    Procedure

    1. Figure out the fabric width when you get a bag order.
    2. Purchase the special width fabric rollers or slitting the general one into right width.
    3. Printing according to your customers'
    requirement.


    Flexographic Printing Effect

    Screen Printing Effect



    Feeding Part

    Function:

    Air Shaft Winding

    Automatic Loading


    Correcting Deviation Device

    Using photoelectric eye to correct deviation automatically.

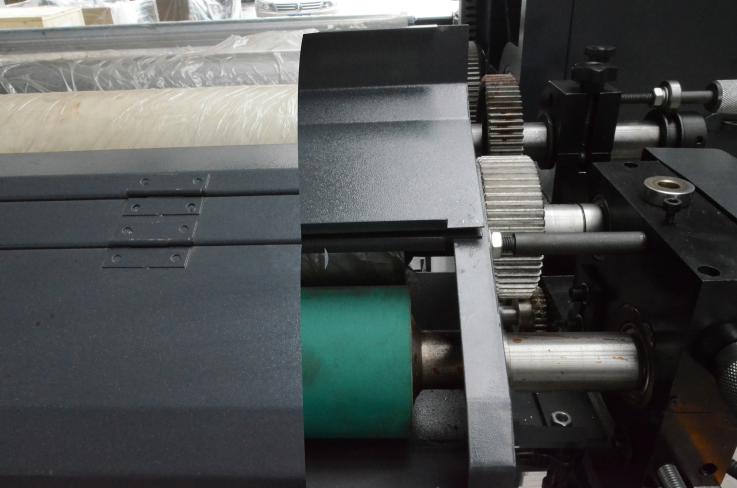

    Printing Unit


    Group: Two

    Printing Way: Plating roll, Plate roll, Net roll, Peel roll

    Heating And Dryer Unit

    Fan drive and heating

    Rewinding Unit


    Air Shaft Rewinding

    Automatic Up And Down Loading

    Magnetic Tension Control Device
