Ultrasonic water level meter LMB ultrasonic sensor for water level
measurement
Thank you for focusing on our product Ultrasonic water level meter
LMB.
Ultrasonic water level meter LMB, the use of imported host shell, compact and easy to install,
commonly functional, economical and practical is preferred.

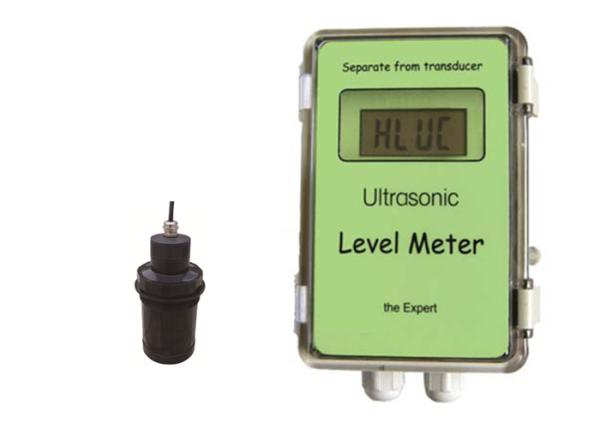

Remote version ultrasonic level meter is that the level meter's
electronic unit (set parameters, display, the signal output) is
separate from the ultrasonic probe, connected by cable each other,
the ultrasonic probe is installed in the upper container, the
electronic unit (i.e., host) can choose the installation location
flexibly, in order to facilitate observation, operation.
Ultrasonic water level meter LMB ultrasonic sensor for water level
measurement Features:
1. With the patents of Smart echo processing technology to ensure
the accuracy and stability.
2. Separate probes are easy to install, host installation location
is flexible and easy to operate.
3. Ultrasonic probe using PVC or PTFE materials for a variety of
corrosive conditions, sanitary type is optional.
4. Patented ultrasound probe structure with short blind range, high
sensitivity, build-in with full range of automatic temperature
compensation.
5. 6 relays at most, MODBUS, HART, PROFIBUS-DP protocol, and other
functions.
6. Maximum length allowed for the probe cable 1000m, super
anti-electromagnetic interference.
7. Electric heating probe for cold regions.
8. Can be flexibly customized according to customer demand.
Benefits:
1. With the patents of Smart echo processing technology to ensure
the accuracy and stability.
2. Ultrasonic probe using PVC or PTFE materials for a variety of
corrosive conditions, sanitary type is optional.
3. Separate probes are easy to install, host installation location
is flexible and easy to operate.
4. 6 relays at most, MODBUS, HART, PROFIBUS-DP protocol, and other
functions.
5. Maximum length allowed for the probe cable 1000m, super
anti-electromagnetic interference.
6. Patented ultrasound probe structure with short blind range, high
sensitivity, build-in with full range of automatic temperature
compensation.
7. Electric heating probe for cold regions.
Can be flexibly customized according to customer demand.
Technical specifications
| Model | LMB |
|
| Measuring range | (0~40m)based on different types of probes |
| Accuracy | 0.2% Full span (In air) |
| Output Current: | DC4~20mA |
| Output Load: | 0~500Ω |
| Output Resolution: | 0.03% Full span |
| Mode of Indication: | 4 Digit LCD/6 Digit LED |
| Display Resolution: | 1mm/1cm |
| Switching Output: | 2(high and low)(optional) |
| Relay Type: | 5A 250VAC/30VDC |
| Serial Communication: | RS485(optional) |
| Communication Protocol: | MODBUS |
| Baud Rate: | 19200/9600/4800 |
| Power Supply: | DC21V~27V 0.1A |
| AC85~265V,0.05A |
| Temperature compensation: | The whole range is automatic |
| Temperature Range: | -40 ºC ~ +75 ºC |
| Measure Cycle: | 1.5second (tunable) |
| Parameter set up: | 3 induction buttons |
| Cable Fix: | PG13.5/PG11/ |
| Crust Material: | ABS |
Remote Version Level Meter Selection Guide
| Range | Input Power | Input Current | Output Current | Relays | Communication | Sisplay Mode | Shell Material |
|
| LMB | Min 4m,Max 40m | DC24V(10%) | DC 0.1A | DC4～20mA | 2 | modbus | 4 &6 digital LCD | ABS |
| AC85～265V | AC 50mA |
| LMC,LMD | Min 4m,Max 40m | DC24V(10%) | DC 0.1A | DC4～20mA or with Hart | 2,4,6 | Hart,modbus,profibus | 14 digital LCD in 2 rows with backlight | ABS |
| AC85～265V | AC 50mA |
Manual download: LMB&LMC&LMD
Catalog_remote_version.pdf
Packing
With years of export experience along with excellent quality,
advanced services and competitive prices, Lanry has won numerous
customers' trust and support.With years of export experience along
with excellent quality, advanced services and competitive prices,
Lanry has won numerous customers' trust and support.
Smart oil level gauge Standard meter: 3-7 days
Special meter: pls contact us
Express, by air, by sea canbe optional.
