940nm Macro-channel Water-cooled Horizontal Array , 100 watt High
Power Laser Diode

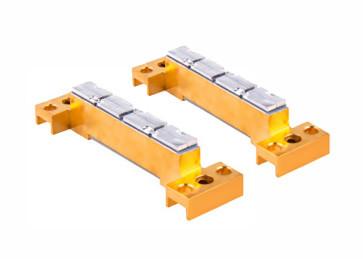

LDA series high power packaged bars provide OEM customers with
scalable power up to kilowatts for pumping, industrial, medical and
applications. The packaged laser bars can be configured for
enhanced brightness through stacking, scaled linearly or vertically
for optimized light and material integration. LDA series offer
- Wavelengths at 808nm to 1100nm range
- Modular and Compact design for ease of integration
- Up to 100W CW and 300W QCW laser diode bars for high brightness
- Packaged 10mm laser diode bar, various standard bar configurations
(custom bar configurations available on request)
Parameters(20℃)
| Macro-channel Water-cooled Horizontal Arrays |
| Parameter | Unit | LDAQ3-0940-100W |
| Optical Parameter | Operation Mode | - | QCW |
| Center Wavelength | nm | 940 |
| Output Power/Bar | W | 100 |
| Spectral Width | nm | <5 |
| Wavelength& Temperature Ratio | nm/℃ | 0.28 |
| Pulse Width | μs | <500 |
| Duty Ratio | % | ≤ 4 |
| Fast Axis Divergence | deg | <39 |
| Slow Axis Divergence | deg | <10 |
| Electrical Parameter | Threshold Current | A | <25 |
| Operating Current | A | <110 |
| Operating Voltage/Bar | V | <2 |
| Thermal Parameter | Operating Temp. | ℃ | 15 ~ 35 |
| Storage Temp. | ℃ | -10 ~ 60 |
Package Information
Notice
1. Item model notice: LDAQ3 (item model)-0940(center
wavelength)-100W (output power).
2. Package data is only for reference, which can be customized
according to client’s designed drawings.
3. Please make sure laser diode is operated under the temperature
between 15℃ and 35℃, as high temperature will increase threshold
current, decrease exchange rate and accelerate the aging.
4. Please take measures to avoid condensation, which will cause
aging of laser diode.
5. For more information, please contact Hi-Tech Optoelectronics
Co., Ltd.
