    CK5112 Single Column Vertical Turning Lathe Machine With 12 Months Warranty

    Ask Lasest Price
    Brand Name : Baishun
    Model Number : CK5112
    Certification : CE, ISO
    Price : can be negotiated
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 50 set/Month
    Delivery Time : 20 days after received the down payment vertical turret lathe
    • Product Details
    • Company Profile

    CK5112 Single Column Vertical Turning Lathe Machine With 12 Months Warranty


    CK5112 chinese cheapest single column vertical turret lathe machine for sale


    Product Description

    This series machine is suitable for machining parts in all industries. On the machine cylindrical turning and boring . tapering and surfcing as well as grooving can be carried out rough and finishing.

    The table adopts thrust ball bearing with high accuracy for rolling guideway (CA5116E, CA5120E machine is also adopted slipping guideway). Spindle radial is performed NN30 type double row cylindrical rolling bearing. so it can improve the rotary procision and load capacity of the table.

    The rail head equipped with pentagonal turret, and the side heud is designed with square turret. The two heads are all adopted the hydraulic balance.

    The rail head (CK518-CA5112E machine) is adopted rolling leadscrew bearing for transmission in horizontal and vertical movement.

    The electrical equipment of machine is controlled by PC. so it is high reliability.

    Overall dimensions of machine is beautiful and it is delightful for people to use. It is easily for maintenaince and service.

    The attachment of side head, digital control and turning taper can provided on special requirement.

    Feature

    1. The table adopt high precision thrust ball rolling guideway and slide guideway in 1.6 metre of diameter.

    2. The column cross rail adopt high strengthness and high wear-resistance grey cast iron.

    3. Firction pairs of guideway in horizontal and vertical diretion adopt wear-resistance grey cast iron.

    4. Ram guideway surface of rail, side head adopt middle frequency harden rolling grind finish machining.

    5. Black chromium plane of new type for batton siation.

    6. The rail head is designed with leadscrew for horizontal and vertical transmission.

    7. Pentagonal turret pinion plate index positioning with high strenthness and rigidity.

    8. A Lubrication of cross is suppied with oil by hand pump.

    Vertical Lathe Machine Technical Parameter:

    Max. cutting workpiece diameter800mm
    Max.weight of the workpiece1500kg
    The workpiece speed range30-260r/min
    Beam trip500mm
    Tool post stroke level500mm
    Tool post stroke vertical450mm
    The artifact max.hight800mm
    The workbench diameter700mm
    Feed range0.25-90mm/min
    Beam movement speed350mm/min
    Main motor power11kw
    Head lateral movement speed2000mm/min
    Rest the longitudinal movement speed1500mm/min
    Knife party size(W*H)30X40mm
    Overall dimensions1700x2100x2600mm

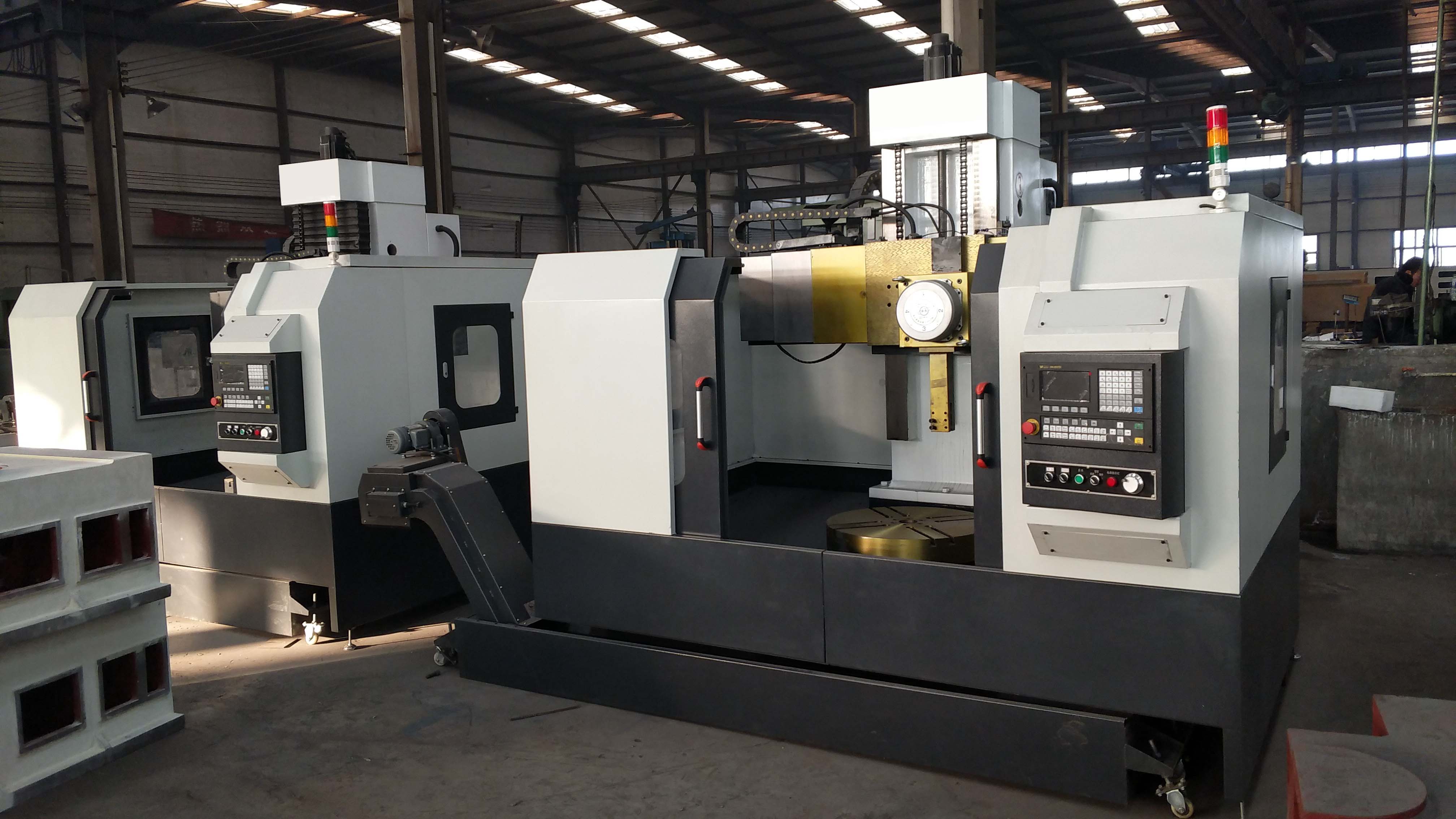

    Vertical Lathe Machine Details:

    Packaging & Shipping

    Payment terms

    We usually use T/T, L/C

    T/T:T/T 30% in advance, the balance be paid after inspection before the delivery

    Before delivery, we will send you the pictures of finished machines and welcome you to come to our factory for inspection

    Way of packing

    FCL&LCL export standard in 20/40feet container

    FCL:Sea-worthy package,machine are fixed in container and the spare parts are packed in wooden boxes

    Shipping

    MSK/MSC/APL/EMC/PIL and so on

    Warranty

    12 months under normal use except for wearing parts
