    Servo Plastic Tank Clinching Machine for 4 Sides Aluminum Heaters

    Ask Lasest Price
    Brand Name : WONDERY
    Supply Ability : 100 Set/Sets per Year
    Price : Negotiable
    Model Number : KYJ-4B
    Certification : CE
    • Product Details
    • Company Profile

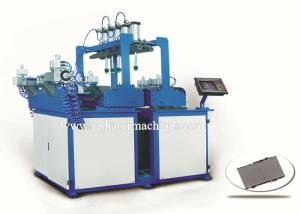

    Servo Plastic Tank Clinching Machine for 4 Sides Aluminum Heaters

    Servo Plastic Tank Clinching Machine for 4 Sides Aluminum Heaters


    This semi automatic heater plastic tank clinching machine is used to lock together the header plate, the gasket, and the plastic tank through the rolling mechanism.

    This plastic tank crimping machine is characterized of high automation, suitable for various models.

    The high quality radiator plastic tank clinching machine for 4 Sides is used for crimping the teeth of the header plates and locking the plastic tank tight to the core body. There is a sealed space between the crimped plastic tank, sealing gasket and header plate. This servo type plastic tank crimping machine is used to handle products of various specifications.

    The machine first clinches the ends of the header plate, and then the lengthwise header plate.

    It saves human labor greatly.


    SPECIFICATIONS FOR High Quality Radiator Plastic Tank Crimping Machine

    Core Size

    Header to header distance

    mm

    100-350

    Header length

    mm

    100-350

    Producitivty

    Cores per hour

    pc

    about 40

    Working Mechanism

    pneumatic and servo

    Overall Dimension

    L,W,H

    mm

    2200*1800*1800mm

    Machine Weight

    Net Weight

    kg

    2800

    Main Features

    1) The equipment is PLC controlled, and the crimping program is set up through the touch screen.

    2) The touch screen can indicate the working status, and the control system stores radiator crimping

    parameters.

    3) The plastic tank clinching machine can crimp the header at 4 sides by one cycle.

    4) The plastic tank clinching machine can have dodge moves and step-forward moves.

    5) The plastic tank clinching machine can reduce human labor greatly.

    6) We also have the semi automatic plastic tank crimping machine which crimps the core based on 2 steps,

    1st step the long side header crimping, and 2nd step the short side header crimping.

    Our Service




    Packaging

    Size

    2200(L) * 1800 (W) * 1800 (H)mm

    Weight

    2.8T


    Packaging Details

    The normal package is plywood box with dessicant bag and wrapping film. Fumigation is not needed.
