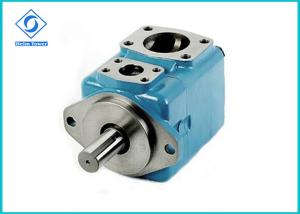

    High Pressure Hydraulic Vane Pump Rotary Speed For Shipping Machinery

    Ask Lasest Price
    Brand Name : Helm Tower
    Model Number : Vickers
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 5000 pieces per month
    Delivery Time : 3 days
    • Product Details
    • Company Profile

    High Pressure Hydraulic Vane Pump Rotary Speed For Shipping Machinery

    High Pressure Hydraulic Vane Pump Rotary Speed For Shipping Machinery


    Brief Introduction
    1. High performance compound and Middle& high pressure vane pump
    2. High pressure and rotary speed
    3. Various displacements available
    4. Pump core can be separately installed, facility maintenance
    Application: Die-casting machine, Engineering Machinery, Shipping Machinery etc
    Features
    1. High performance compound and Middle& high pressure vane pump
    2. High pressure and rotary speed
    3. Various displacements available
    4. Pump core can be separately installed, facility maintenance
    Specification Data
    Rating Pressure: 17.2Mpa
    Displacement Range: 18-193mL/r
    Speed Range: 600-1800rpm

    Series

    Flow code

    (USgpm)

    Geometric displacement

    ml/r

    Max.operating pressure

    Mpa

    Max.speed

    r/min

    Min. Speed

    r/min

    20V27(0.43)212700600
    310(0.61)
    413(0.79)
    516.5(1.01)
    619(1.16)
    722(1.40)
    827(1.67)
    930(1.85)
    1031.5(1.92)
    1135(2.14)
    1240(2.44)16
    1445(2.78)14
    25V1032(1.95)212700600
    1238(2.32)
    1443.5(2.65)
    1547(2.89)2500
    1754(3.30)
    1960(3.66)
    2167(4.13)
    2579.2(4.83)
    35V2167(4.13)212500600
    2581(4.94)
    3095(5.80)
    32101(6.16)
    35109(6.65)2400
    38119(7.26)
    45143(8.72)14

    Appliation:


    Our pumps are mainly used for construction machinery, geological drilling equipment, special vehicles,mining machinery, lifting and transporting equipment, cranes, ship machinery, agricultural and forestry machinery, and so on.
