5~120g & 3~20ms Good Quality Digital Mechanical Tester For
Acceleration Shock Test
Application:
5~120g & 3~20ms Good Quality Digital Mechanical Tester For
Acceleration Shock Test which adpot electronic principle to ensure
the specimen in the process of falling completely in free state,
the truly embody the specimen in the actual collision impact
environmental .
Pulse repetition rate of MS series 5~120g & 3~20ms High Accuracy
Pneumatic Mechanical Shock and Impact Tester is as high as 80
times/min, the Max drop height is 60 mm, and can be customized by
customers' requirements. Controlled by computer dynamic working
table with high frequency response.

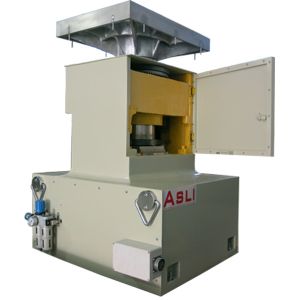

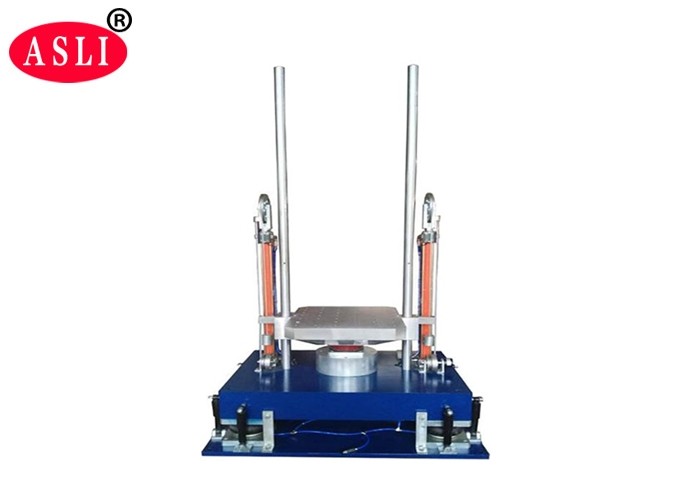

Shock Test bench
Shock and measure controller
5~120g & 3~20ms Good Quality Digital Mechanical Tester For
Acceleration Shock Test Technical Parameters:
| Model | MS-50 | MS-100 | MS-200 | MS-500 | MS-800 |
| Load capacity (kg) | 50 | 100 | 200 | 500 | 800 |
| pulse acceleration( m/s2) | 50~1200 | 50~1000 | 50~1000 | 50~500 | 50~500 |
| Pulse Width (ms) | 20~3 | 20~3 | 20~3 | 20~3 | 20~3 |
| Frequency (times /min) | 10~80 | 10~80 | 10~80 | 10~80 | 10~80 |
| Table Size (mm) | 500X700 | 700X700 | 700X700 | 800X800 | 1000X 1000 |
| Max. Dropped Height (mm) | 60 | 60 | 60 | 60 | 60 |
| Pulse Type | Half Sine wave, (trapezoidal wave, and the sawtooth wave, square
wave optional) |
| External Dimension WXHXD (mm) | 800X1300X 1000 | 800X1300X 1000 | 850X1350X 1100 | 1000X1300X 1900 | 1000X1300X 1900 |
| Weight (Kg) | 1100 | 1250 | 2000 | 3000 | 3500 |
| Protection Device | Door protection, over-load protection, zero signal protection |
| Power | AC 220V(±10%), 1∮3 Lines ,50/60HZ; AC 380 V(±10%) ,3∮ 5
Lines,50/60HZ |
| Environmental Conditions | Temperature: 25℃±5.0℃ humidity: <85%(25℃) |
5~120g & 3~20ms Good Quality Digital Mechanical Tester For
Acceleration Shock Test Features:
1. Working bench with perfect structure, good uniformity of bench's
acceleration.
2. High reliable of system, safety device.
3. The saw-tooth wave and trapezoidal wave, etc. extensible.
4. Capacity of crash and impact test function.
5. Optoelectronic feedback.
Measurement system:
5~120g & 3~20ms High Accuracy Pneumatic Mechanical Shock and Impact
Tester is a kind of special impact waveform capture and analysis
platform, high-quality dynamic measurement , dynamic analysis and
control system based on the structure of DSP. It is made of the
control system, measuring system and application software based on
Windows, module and a low noise design technology is adopted in the
measurement hardware, hardware circuit of control and measurement
component functions are placed in the interface box, discrete
structure combination(control box and measuring box
separately)Using USB2.0 interface box and PC communication,
independent of the computer, which can meet the ISO, MIL - STD,
IEC, OEO, ASTM test standard, is environmental impact test and
measurement analysis of professional tools.
