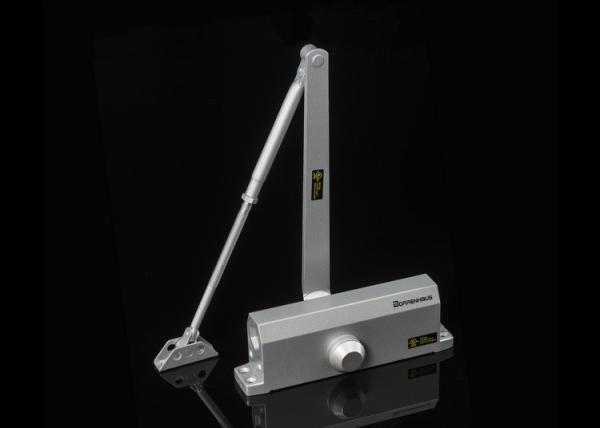

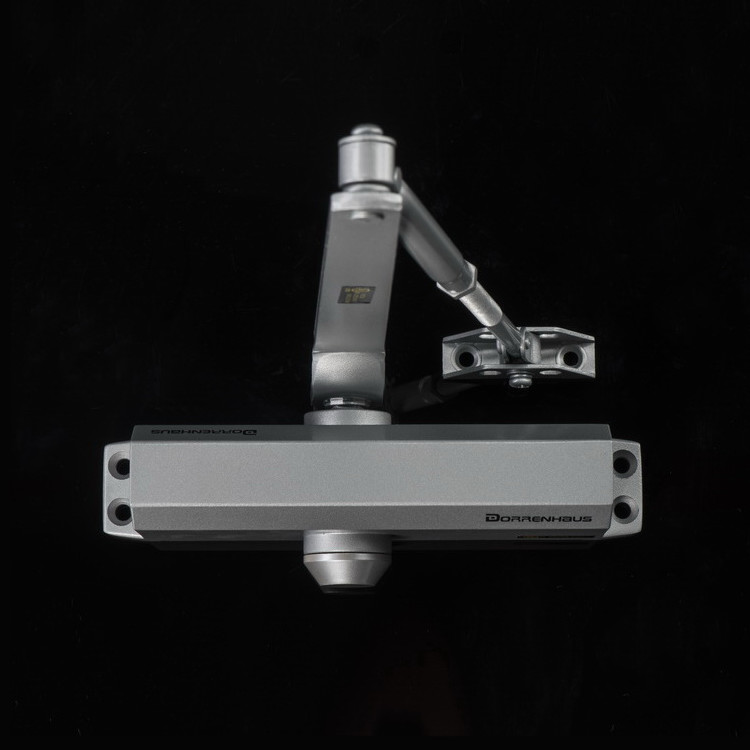

Jamb Mounted Automatic Hydraulic Door Closer D703 Size 3 for Door
Width 950mm
Dorrenhaus Model No. D703 automatic hydraulic door closer is mainly designed
for commercial application, accompany with tri-pack screw sets and
PA bracket,
suitable for regular arm, top jamb and parallel arm mounting.
Ω Automatic Hydraulic Door Closer for Residential & Commercial Doors

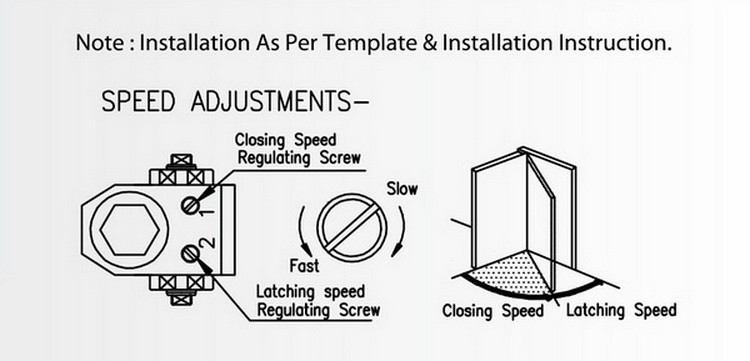

Ω Closing & Latching Speed Adjustable by dual separate control
valves
Ω Heat treated rack and pinion in precision cast aluminum closer housing
Ω Streamlined design allows mounting on commercial area without
adaptor.
Ω Fuchs brand lubricating oil for high lubricity and continuing
lubrication.
Ω Non-handed Installation for regular arm and top jamb mounting
Ω Casting Aluminum Alloy Body with Steel Screw Thread Rocker Arm
Ω Fixed Spring Force Size 3, Suitable for Door Width Limit 950mm
Ω Adjustable Back Check Optional, PA Bracket Optional for Parallel
Arm
Ω Meet standard of UL 10C, including 3 Hours Fire Rating
Ω Meet UL 228 Standard, with 200,000 plus life cycles
► Trusted cooperative supplier of global first-rate
door control trade mark
Finishes: Painted - Aluminum, Bronze, White, Gold, Black, Brown
* SPRING FORWARD, EASY BACK: commercial-level swing arm will not impact opening,
while closing doors slowly enough to allow graceful entrance and
exit
* SKILLED WORKMANSHIP: even operation, oil tight, no noise
* SOFT, HANDS-FREE CLOSING: let the door finish work, enjoy self-acting closing and
locking, keep quiet and safety.
| Width | Applicable | Body Spec. | Installation Dim. |
| 950mm | 40-65kg | 225*42*74mm | 208*19mm |
Spring | Max. Open | Fireproof |
| Production |
size 3 | 115º | UL 10C | 36 months |
|
![]() |
