    Universal IEC Inlet EMI Filter Solder Lug Terminal Shrapnel Three In One Filter

    Universal IEC Inlet EMI Filter Solder Lug Terminal Shrapnel Three In One Filter


    IEC Inlet EMI Filter:

    YB12C5-6A-Q is the IEC Inlet EMI Filter with switch, socket and fuse.Solder lug terminal and snap-in vertically integrates an IEC inlet type and filter with noise suppression in a slim form factor.The current rated can be offered up to 15 amps and the rated voltage is 115/250vac.


    Feature Of IEC Inlet Filter

    < Offer in snap-in mounting type with optional vertical & horizontal

    < Snap-in installation design, simple and quick,

    < Power entry model filters with an IEC inlet, a mains filter with dual-fuse and rocker switch.

    < The choice of integrated earth line choke is also available.
    < Low leakage current version upon requested.
    < Custom-specific versions are available on request.


    Typical Applications:

    1. Portable electrical and electronic equipment

    2. Medical equipment

    3. Test and measurement equipment

    4. Small and medium-sized machines and household equipment


    Technical Specification:

    ItemIEC EMI Filter
    ModelIEC Filter YB12C5-6A-Q(R)
    Transfer FunctionLow Pass
    Package TypeSurface Mount
    Nominal Center Frequency10K-30MHZ
    Insertion Loss60~90dB
    Input Impedance50Ω
    Rated Voltage115V/250V
    Rated Current1~10A
    Environmental Temperature40°C
    Temperature Range25 / 085 / 21
    Operating Frequency50/60HZ
    Line to Line1450VDC
    Line to Ground2250VDC
    Maximum Leakage Current250VAC/60HZ 0.8mA Max

    Naming Rule:

    YB12C5-6A-Q
    Our brandCircuitDimensionCurrentOutput Connection
    12:12 circuitC51A :1 ampQ:Solder Lug Terminal
    4A :4 amp
    C5: One Fuse6A :6 amp
    C6: Two Fuses8A:8 amp
    10A:10 amp

    Filter Selection Table:

    Part No.CaseRated Currents (A)Output Connections
    YB12C5-1AC51Solder Lug Terminal
    YB12C5-3AC53
    YB12C5-6AC56
    YB12C5-8AC58
    YB12C5-10AC510

    *Q: Fast-on 6.35x0.8mm S: solder 4.0x0.8mm W: UL1015 18awg

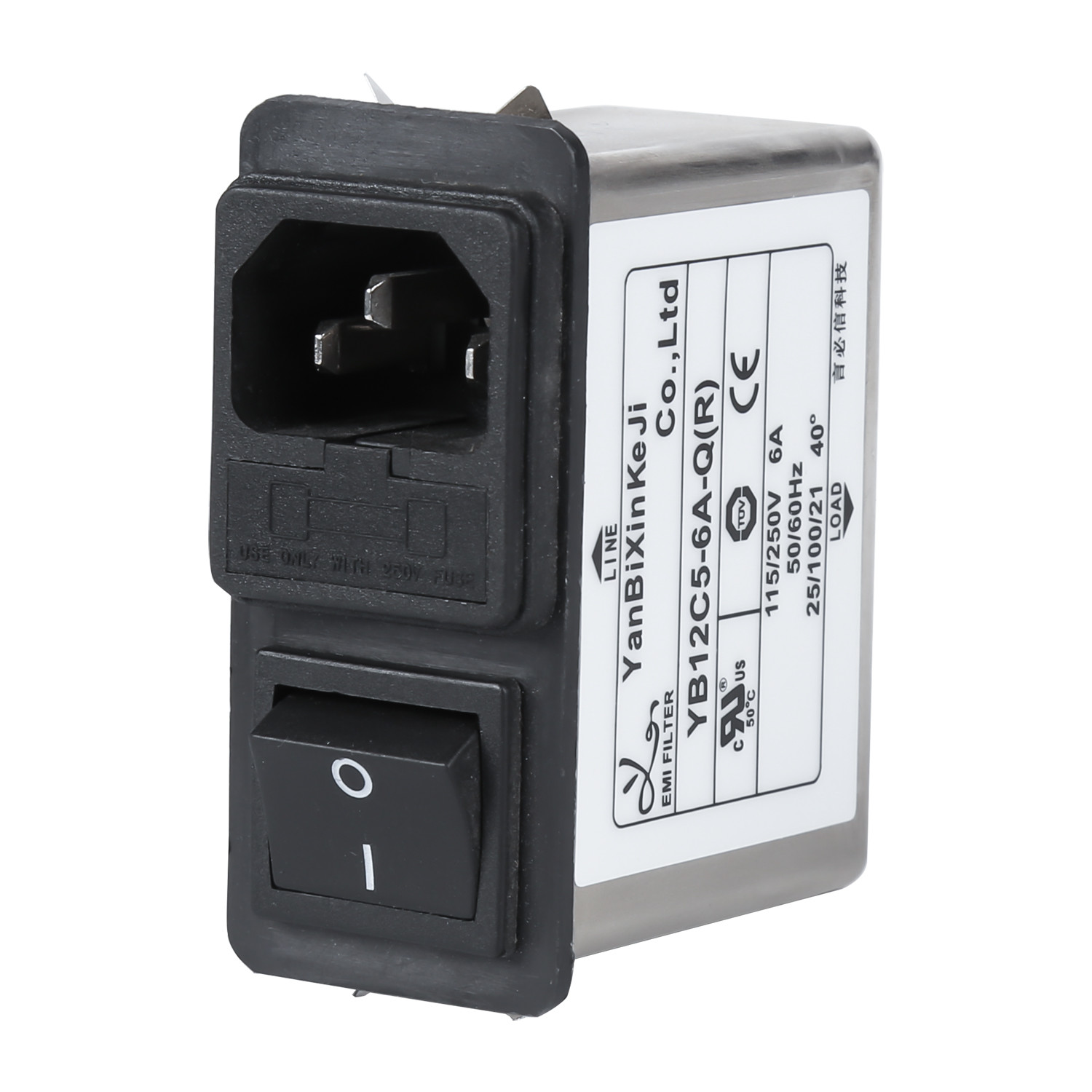

    YB12C5-6A-Q(R) Picture:


    Electrical Schematic:

    Mechanical Dimension(Unit: mm)


    CaseABCDEFGHIJK
    C5/C6626129.565.5321111196.35*0.8
    Tolerances±1±1±1±1±0.15±1±0.5±0.5±0.5±1±0.15


    Our Certificates:

    Single Phase Filter:

    cUL:20190321-E471748
    TUV:B0899310001Rev.01
    CQC:19001226449
    CE:SZAIS180620005-01
    ROHS:MMCRHRWM60371744
    Three Phase Filter:
    cUL:20190325-E502442
    ENEC:ENEC-02580
    CE:SZAIS180620005-01
    ROHS:MMCRHRWM60371744


    FAQ

    Q1: What can you supply?

    A1: We can supply custom EMI Power Filter,3 Phase EMI Filter,EMI EMC Filter and so on, all kinds of EMI Filter.


    Q2: Are OEM and ODM available?

    A2: Yes,it is availabel. As a professional EMI Power Filter manufacturer, we offer OEM and ODM service.


    Q3: Do your products have certificates??

    A3: Yes, our EMI Filter have UL, CQC, CE, TUV, ROHS and other certificates.


    Q4: How about your product warranty?

    A4: We offer one-year warranty upon delivery.


    Q5: How about the aftersales support?

    A5: We will offer on-time response for online enquiries from oversea users. Please feel free contact us by email, Ali-Trade, WhatsApp, WeChat and Skype.
