    Computer - Control 5000L Asphalt Sprayer Truck With Automatic In - Cab Controls

    Ask Lasest Price
    Brand Name : SINOTRUCK HOWO
    Model Number : LMT5162GLQ
    Certification : CCC/ISO/CE
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 1,000 units per month
    Delivery Time : 35 working days after received payment
    • Product Details
    • Company Profile

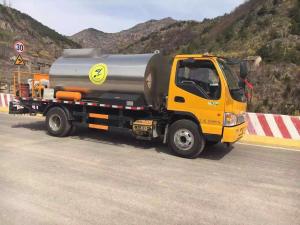

    Computer - Control 5000L Asphalt Sprayer Truck With Automatic In - Cab Controls

    Intelligent Asphalt Distributor, Asphalt Distributor truck,Bitumen truck,Asphalt spray truck


    LMT5162GLQ automatic asphalt distributor is assembled with the chassis of the
    second degree vehicle and the asphalt spray device developed by our company. The
    stainless steel is made into the asphalt tank body. It adopts the aluminum
    silicate material to keep the heat preserved.
    The asphalt pump is controlled by the hydraulic system and could transmit the
    asphalt steadily. There are two kinds of methods to spray the asphalt and they
    are rear pipeline computer-control automatic spray method and manual nozzle
    spray method. The spray volume is precisely controlled by the computer.
    LMT5162GLQ automatic asphalt distributor adopts the heat transfer oil to heat
    the asphalt pump and pipeline system. The pipeline and nozzle could be cleaned
    by using high pressure air and are not easy to block. The maximum spray width is
    up to 6m. It takes proud in its high efficiency of spraying and reliable working
    performance.


    NameAsphalt Distributor
    ModelLMT5162GLQ
    Outline Dimension of Complete Vehicle (L/W/H mm)8995×2490×3200
    Tank Capacity (m3)8
    Chassis ManufacturerDongfeng Motor Company
    Approach Angle/ Departure Angle20°/14°
    Engine Rated Power/ Rotation Speed (kw/r/min)140/2500
    Fuel TypeDiesel
    Engine Model Pattern and CategoryB190 33 (made by Commins)
    Inline 6 cylinder 4-stroke supercharge
    Top Speed (km/h)90
    Complete Vehicle Weight (kg)16000
    Working Speed (km/h)2.5~10.5
    Asphalt Pump Discharge (L/r)0.86
    Max. Spray Width (m)6
    Asphalt Spray Volume (L/m2)0.3~3.0
    Drive SystemDriven by hydraulic system
    Max. Pressure of hydraulic system (MPa)15
    Heat Preservation Way of Asphalt Pump

    Heat is preserved by the heat

    transfer oil heating system.

    Cleaning WayCleaning using high pressure air and diesel

    (I) Grades and Capacity of Oils. emulsion bitumen sprayer

    NameGradeCapacity (L)
    Automobile fuelLight diesel oil145
    Dynamo fuelGasoline #90 or higher25
    Hydraulic oil for the working devicesAnti-wear L-HM68100
    Heat transfer oil for the working devicesGreat Wall #320110
    Fuel for asphalt heatingLight diesel oil
    Pipeline-purge diesel oilLight diesel oil75

    (II)Operation of emulsion bitumen sprayer .

    FAQ


    Q1. What is the advantage of your Asphalt Distributor?


    We have two categories of Asphalt Distributors: Ordinary and Intelligent. Please take a look at our catalog to know the 10 advantages of the Ordinary type. The advantages of the Intelligent type: 1. The main accessories (asphalt pump, burner, control system) are imported; 2. Adjustable spray amount based on the viscosity of the medium; 3. Two sets of control systems (cab and back operating platform) and newly launched GPS remote control and diagnose system. (We also launched a Standard type at lower price and high spray effect in 2005)


    Q2. What is the price of your Asphalt Distributor?


    We have three kinds of Asphalt Distributors: Ordinary, Standard and Intelligent. Prices range from 10,000 to 1 million based on the type, capacity and configuration.


    Q3. What is the difference between Intelligent Asphalt Distributor and Standard Asphalt Distributor?


    A. Intelligent: The whole operation can be carried out in the cab; Standard: Manual operation.

    B. Intelligent: Imported accessories (asphalt pump--Danish ROTAN, burner—Italian Riello, hydraulic pump –Germany Rexroth, temperature control system—Omron, computer control components—Siemens. The standard type also uses imported accessories.

    C. Intelligent: heat transfer oil heating system, each nozzle is controlled by separate computer. Standard: asphalt pump+ heat transfer oil, one computer controls three nozzles.


    Q4. What warranty coverage do I have?
