    Servo Motor Plastic Thermoforming Machine PLC Touch Screen Square Steel Structure

    Ask Lasest Price
    Model Number : TQC-650B
    Certification : ISO9001
    Price : Depends on different model
    Payment Terms : L/C, T/T
    Supply Ability : 4 sets / 90 days
    Delivery Time : 90 days
    • Product Details
    • Company Profile

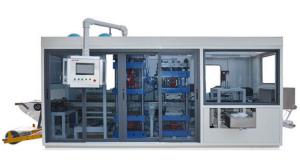

    Servo Motor Plastic Thermoforming Machine PLC Touch Screen Square Steel Structure

    Descriptions Of TQC-650B :

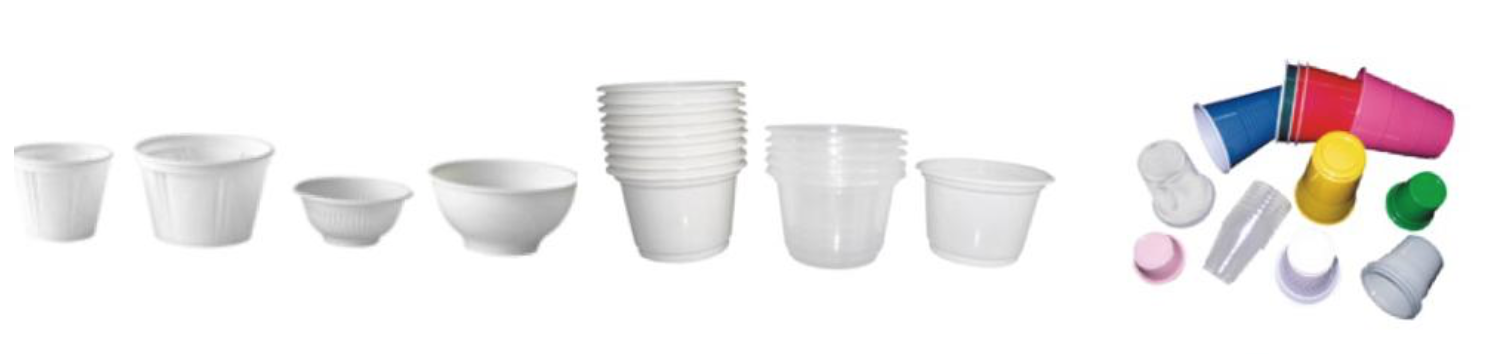

    TQC-650B suitable for producing disposable products like plastic bowls, cups, trays, plates, covers, lids, containers, etc.

    Plastic thermoforming machine adopts servo motor for sheet feeding and plug stretching, PLC for program, touch screen for operation, automatic mechanism movement lubricant automatically at certain times, automatic sheet feeder with square steel structure.

    The whole machine features : stable, low noise and high efficiency. TQC-650B have one year guarantee, after this time, we still offer professional after-sales service.


    Main Technical Parameters
    ModelTQC-650B
    Max. Forming Area650 x 320 mm
    Max. Forming Depth125 mm
    Sheet Thickness0.3-1.8 mm
    Sheet Width660 mm
    Forming Speed20-25 times/min
    Air Pressure0.6-0.8 Mpa
    Air Consumption2.0 ㎥/min
    Water Consumption0.5 ㎥/h
    Rated Power98 kw
    Power SupplyAC 380V, 50HZ, 3 Phase, 4 Wire
    Dimension (LxWxH)7000 x 2000 x 3100 mm
    Weight5 T

    Quality Servo Motor Plastic Thermoforming Machine PLC Touch Screen Square Steel Structure for sale
