1.5 Ton Capacity Walkie Pallet Stacker With Standing Driving Motor System

    Buy cheap 1.5 Ton Capacity Walkie Pallet Stacker With Standing Driving Motor System from wholesalers

    Buy cheap 1.5 Ton Capacity Walkie Pallet Stacker With Standing Driving Motor System from wholesalers
    • Buy cheap 1.5 Ton Capacity Walkie Pallet Stacker With Standing Driving Motor System from wholesalers

    1.5 Ton Capacity Walkie Pallet Stacker With Standing Driving Motor System

    Ask Lasest Price
    Brand Name : JAC
    Model Number : CDDW15-III
    Certification : CE,ISO9001,ISO14001,OHSAS18001
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1000UNITS/MONTH
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    1.5 Ton Capacity Walkie Pallet Stacker With Standing Driving Motor System

    Electric Walkie Stacker With Load Capacity 1.5 Ton ,WarehouseForklift , Economic Type , Lift Height From 1.6m to 3.3m


    Walkie type electric stacker provides a cost effective solution for applications involving medium lifting storage and short distance pallets transportation.
    Advantages:
    STRUCTURAL AND SAFETY :
    • Advanced AC control system Intelligentized regenerative brake system.
    • Multi-function display with BDI and fault code etc.
    • Emergency reversing device.
    • Auto deceleration system utilizes regenerative braking .
    • Built-in pressure relief valve protects the trucks from overloads.
    • Emergency power disconnect.
    • Stepless speed control.
    • With lifting limit switch to shut off pump motor at the max. lifting height.
    • Standing driving motor system has a small turning radius. The motor structure is water-proof and dust-proof.
    SERVICEABILITY:
    • CANbus technology reduces wiring complexity and increase reliability.
    • Advanced AC control system with brushless motor .
    • Auto deceleraion system utilises regenerative braking .
    • Side-way battery with roll-out system is very convenient for replacement.

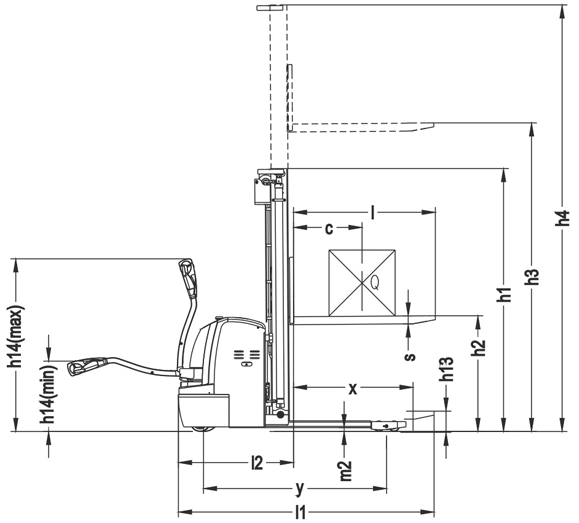

    Parameters:

    Model CDDW15-Ⅲ
    Load capacityQ(kg)1500
    Load centre distancec(mm)600
    Load distance, centre of drive axle to forkx(mm)697
    Fork height, loweredh13(mm)90
    Tyre size, frontmmφ250×70
    Tyre size, rearmmφ80×70
    Additional wheels(dimensions)mmφ150×60
    Wheels, number front rear(x=driven wheels) 1x+1/4
    Height, mast loweredh1(mm)2087/1837/2087/2237
    Free lift(option 2500~3500mm)h2(mm)~
    Max. lift heighth3(mm)1600/2500/3000/3300
    Height,mast extendedh4(mm)2087/3087/3587/3887
    Height of tiller in drive position min./max.h14(mm)670/1300
    Overall widthb1(mm)2045
    Overall lengthl1(mm)878
    Length to face of forksl2(mm)820
    Fork dimensionss/e/l(mm)60/170/1070(1150)
    Width overall forksb5(mm)570/695
    Aisle width for pallets 800×1200 lengthwaysAst(mm)2450
    Turning radiusWa(mm)1605
    Travel speed, laden/unladenKm/h5.8/6
    Lift speed, laden/unladenm/s0.06/0.13
    Lowering speed, laden/unladenm/s0.13/0.10
    Battery voltage,nominal capacity K5(Duplex Mast)V/Ah24/200
    Battery voltage,nominal capacity K5(Triplex Mast)V/Ah~
    Battery weightkg160
    Battery dimensions l/w/hmm800x254x320
    Service weight(with battery)kg760/810/835/860
