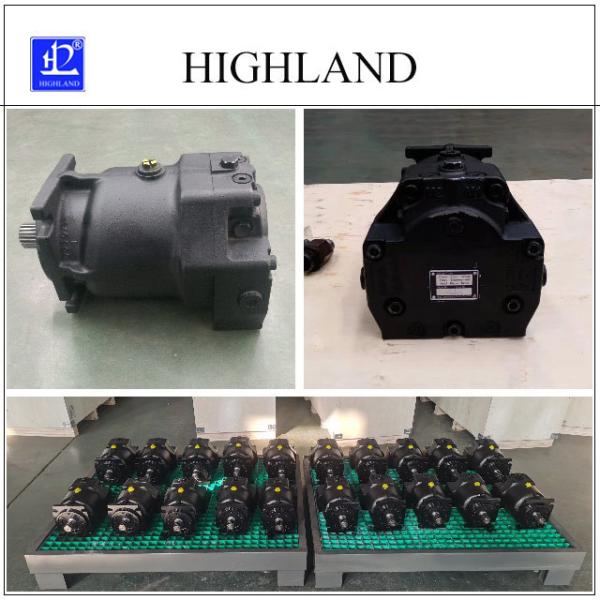

LMF110 Combine harvester hydraulic piston motors Lifetime Technical
Support
Quick Detail:
· Cast iron housing
· Hydraulic components
· Model LMF110
· Hydraulic system power components
· Principle hydraulic transmission
· Features reliable quality
· Simple layout
· System Solutions
· Work fast
· Fully replace imported products
· Patent certificate certification
· Application drying machinery Hydraulic Piston
· 1 year warranty
Description:
Hydraulic piston motors Specifications:
Hydraulic piston motor is an important device in the hydraulic
system. It relies on the reciprocating motion of the plunger in the
cylinder body to change the volume of the sealed working chamber to
achieve oil absorption and oil pressure. Plunger motors have the
advantages of high rated pressure, compact structure, high
efficiency and convenient flow adjustment. They are widely used in
occasions where high pressure, large flow and flow need to be
adjusted.
Specifications:
LMF Series Technical parameter
| LMF hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 |
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed
(Full load condition) | r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 |
| Min continuous working speed | r/min | 500 |
| Pressure | Rated working pressure | Mpa | 35 |
| Max working pressure (transient) | Mpa | 42 |
| Continuous working pressure | Mpa | 30 |
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 |
| Torque | Continuous output torque
(Under continuous working pressure) | Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 |
| Temperature | Allowable shell temperature | ℃ | 80 |
| Max working temperature of oil tank | ℃ | 70 |
| weight | HPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HPV series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 |
Notices:
Hydraulic oil
The suitable replacement period for hydraulic oil in a sealed tank
system is 2000 hours, and more often if the hydraulic oil is
contaminated with water or other external materials or subjected to
abnormal operating conditions.
As a general recommendation, the 10µ inlet oil filter should be
replaced every spring or every 1500 hours (whichever occurs first)
on a sealed tank system, or in an open tank system with an air
filter fill cap. The oil filter should be replaced every 500 hours.
Heat Exchanger
The heat exchanger core and fins are kept clean at all times for
maximum cooling and system efficiency, and the exterior of the heat
exchanger is checked daily for blockages and cleaned as needed.
Application:
Mixer truck: concrete mixer truck, cement mixer truck;
Coal mining machinery: scraper;
Industry: pharmaceutical machinery;
Transport vehicles: road rollers, concrete pump trucks, stabilized
soil mixers
FAQ
Q1. Can I have a sample order for stove car hydraulic piston motor?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
10 to 15 days for samples, mass production according to MOQ
Q3. Do you have any MOQ limit for stove car hydraulic piston motor?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
Ship by sea, it generally takes 15-20 days to arrive, and air is
also optional.
Q5. How to proceed an order for stove car hydraulic piston motor?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q7: How to deal with the faulty?
Firstly, our products are produced in strict quality control
system.Secondly, we will inspect the defective pump and motor, and
then respond according to the actual situation.
