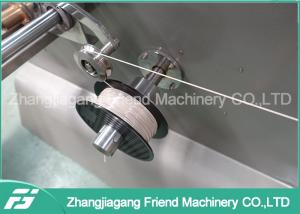

    Low Temp 3D Printer Filament Mini Lab Extruder Machine

    3d Printer Filament Mini Lab Extruder Machine


    Application :


    Low Temp. PCL 3D Printer Filament Extrusion Line can process different diameter filament. It can process ABS/PLA filament, PE/PP filament etc with different screw design. This line adopts Delta Inverter and orman temp. controller system so that the tolerance is within 0.03mm even it can be minus or plus 0.01mm . It is an ideal equipment to process 1.75mm and 3mm ABS/PLA filament. The screw can be taken and clean easily, so you can change the color easily. The water tank adopts two levels, one hot water and one cool water so that the filament can be controled quite round.


    Configuration of Low Temp. PCL 3D Printer Filament Extrusion Line:


    MachineQuantity
    Hopper dryer1SET
    Extruder1SET
    Mould and die2SETS (1.75mm and 3.0mm)
    4 Meter Hot water tank1SET
    2 Meter Cold water tank1SET
    Laser measuring machine1SET
    Haul off machine1SET
    Winding machine1SET

    Technical parameters of Low Temp. PCL 3D Printer Filament Extrusion Line:


    Extruder TypeSHSJ-35SHSJ-45
    Motor power7.5kw15kw
    Capability8-12kg/h16-20kg/h
    Feeding raw materialABS/PLA/TPU/HIPS PelletABS/PLA etc. Plastic Pellet
    Application1.75mm, 2.85mm, 3mm1.75mm, 2.85mm, 3mm
    Tolerance

    Normal : Minus or plus 0.03mm ,Even 0.02mm
