    128X64 LCD Graphic Display Module S6B0724 Driver STN YG Display

    128X64 LCD Graphic Display Module S6B0724 Driver STN YG Display

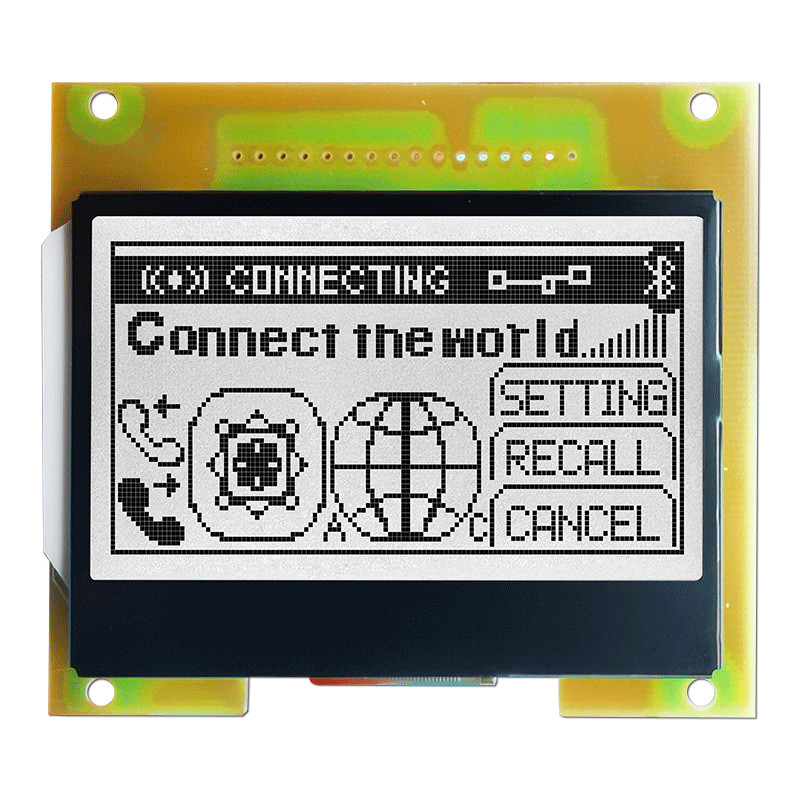

    128X64 Graphic LCD Module | STN +YG Display With White Side Backlight/HTM12864-8G


    HTM12864-8G | Monochrome Graphic Module | 128x64 Pixels | Transflective LCD | Side White Backlight | STN (+) Positive Display


    HOTLCD 128x64 graphic Liquid Crystal Display module shows dark pixels on a white background. This transflective LCD Display is visible with ambient light or a backlight while offering a wide operating temperature range from -20 to 70 degrees Celsius. This HTM12864-8G display has an optimal view of 6:00, operates at 5V supply voltage and is RoHS compliant.


    Mechanical Data


    Item

    Standard Value

    Unit

    Module Dimension

    80.0 x 70.0x 11.3

    mm

    Viewing Area

    65.6x38.0

    mm

    Mounting Hole

    60.775 x 32.935

    mm

    Dot Pitch

    0.475X0.515

    mm

    Dot Size

    0.45x0.49

    mm


    Electrical Characteristics

    Item

    Symbol

    Standard Value
    typ.

    Unit

    Input Voltage

    VDD

    5.0

    V


    Interface Pin Function


    Pin No.

    Pin Name

    Function

    1

    D/C

    Register Select

    2

    /RD

    Read signal

    3

    /WR

    Write signal

    4

    RET

    Reset Signal

    5

    /CS

    Chip enable

    6

    VSS

    Power Supply,(0V)

    7

    BLA

    Backlight Power Supply +

    8

    E

    Positive Power Supply

    9~16

    VDD

    Data bus lines


    Search Keyword: 128x64 lcd, 128 x 64 lcd, lcd 128 x 64


    LCD Custom Solutions

    Cable Customization

    Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.


    Connector Customization

    Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.


    Interface Customization

    Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HI, USB, SPI, VGA and more into your display to achieve your design goals.


    PCB Modifications

    Choose from a wide selection of changes including shape, size, pinout, and component layout of your PCB to make it a perfect fit for your application.


    HTM12864-8G Series.pdf
