    2.8 inch TFT LCD color display / 240X320 color screen / 8080MCU interface / wide temperature / plug-in FPC

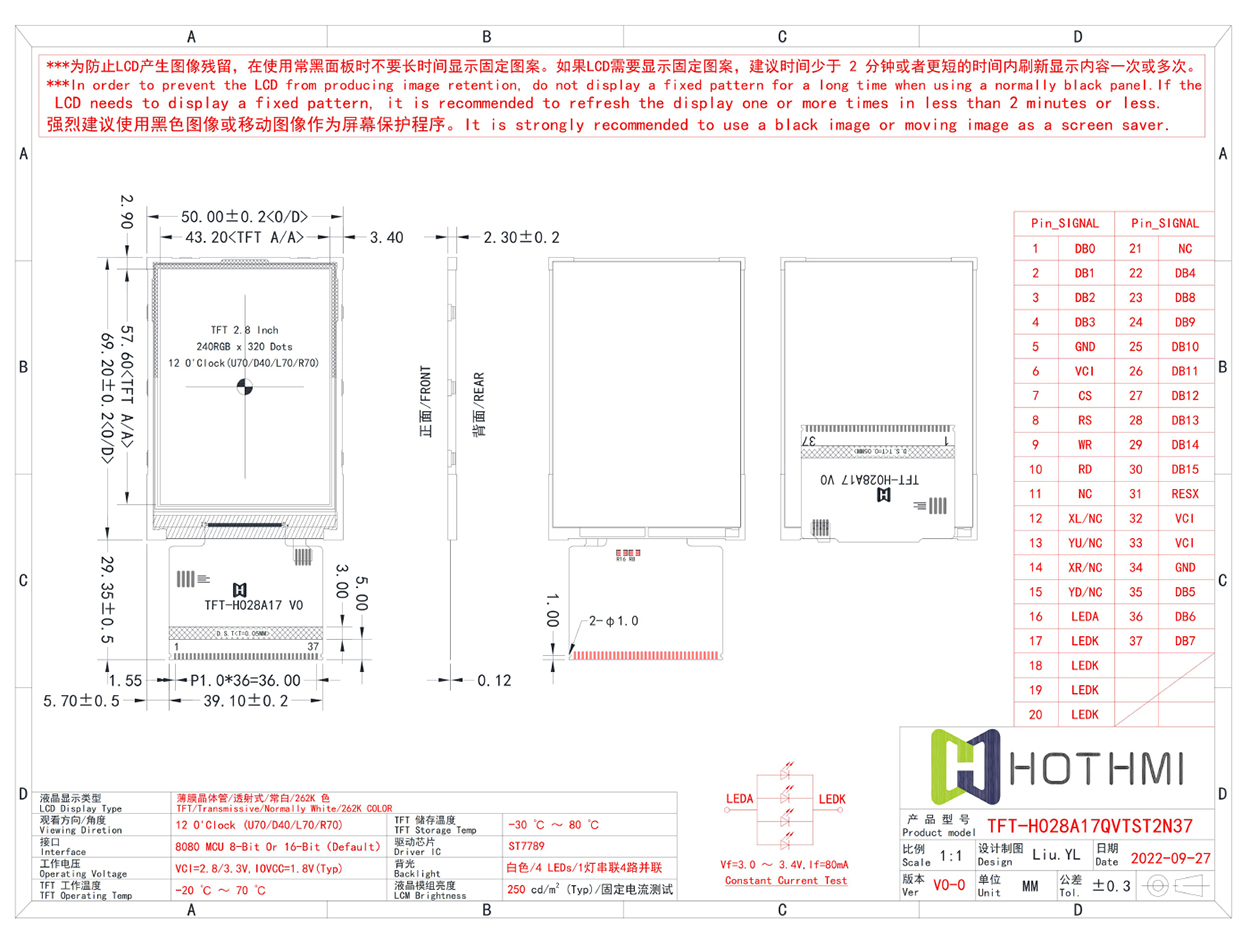

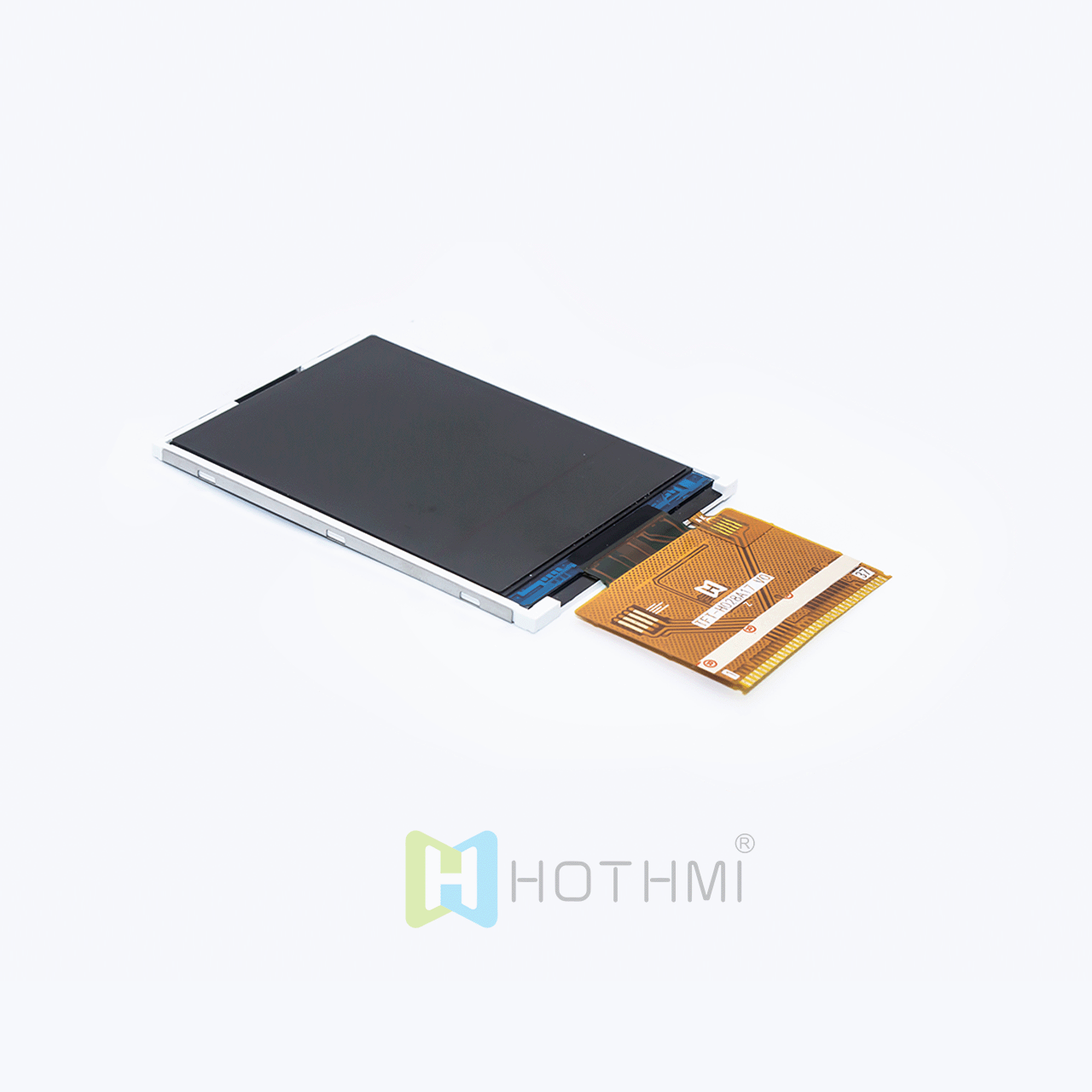

    2.8 Inch 240x320 Dots MCU TFT LCD Display IC ST7789/TFT-H028A17QVTST2N37

    Product parameters
    Field of view window size (mm) - 2.8 inch
    Display size (mm) - 2.8 inch
    Effective Dimensions mm - 43.20(H) x 57.60(V)
    Product Application - Outdoor Instrumentation
    Viewing angle - 12H viewing angle
    Connection method PIN number - 37PIN
    Working temperature - -20~70℃
    Supply voltage - 3.3V


    General Feature

    Item

    Standard Value

    Unit

    Display Size

    2.8

    Inch

    Number of Pixels

    240(H)*3(RGB)* 320(V)

    dots

    Active Area

    43.20(H)* 57.60(V)

    mm

    Outline Dimension

    50.00(H) * 69.20(V) * 2.30(D)

    mm

    Viewing Direction

    12 O'Clock (U70/D40/L70/R70)

    -

    Interface

    8080 MCU8-Bit Or 16-Bit(Default)

    -

    Driver IC

    ST7789-

    Driver Condition

    IOVCC=1.8V,VCI=2.8V or 3.3V(Typ)

    V

    Backlight

    White LED/4 PCS/1 PCS serial 4 ways parallel

    -

    Touch Panel

    Without TP

    -

    CTP Driver IC

    - - --

    CTP Driver Condition

    VDD=3.3V

    V

    TFT Operation AT

    -20 ~ +70

    TFT Storage AT

    -30 ~ +80


    TFT Pin Description

    Pin NO.

    Symbol

    Description

    1 ~ 4DB[0~3]

    MCU parallel interface data bus

    5GND

    Power supply ground

    6VCI

    Power supply

    7CSX

    Chip selection pin.Low enable.


    8


    RS

    -Display data/command selection pin in parallel interface.

    "RS=IOVCC" display data or parameter. "RS=GND" command data.

    9WR

    Write enable

    10RD

    Read enable

    11NC

    Not connected

    12NC/RTP_XL

    Not connected,RTP control pins

    13NC/RTP_YU

    Not connected,RTP control pins

    14NC/RTP_XR

    Not connected,RTP control pins

    15NC/RTP_YD

    Not connected,RTP control pins

    16LEDA

    LED anode

    17 ~ 20LEDK

    LED cathode

    21NC

    Not connected

    22DB[4]

    MCU parallel interface data bus

    23 ~ 30DB[8~15]

    MCU parallel interface data bus

    31RESX

    Reset signal. Signal is active low

    32 ~ 33VCI

    Power supply

    34GND

    Power supply ground

    35 ~ 37DB[5~7]

    MCU parallel interface data bus
