    ISO Textured Geomembrana Ldpe 1mm HDPE Liner Dam Steep Slope Anti Seepage

    Ask Lasest Price
    Brand Name : Wanshengli
    Model Number : 1.0mm
    Certification : ISO, GB, ASTM
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 50000 sqm per day
    Delivery Time : 5~8 working days
    • Product Details
    • Company Profile

    ISO Textured Geomembrana Ldpe 1mm HDPE Liner Dam Steep Slope Anti Seepage


    ISO Standard 1.0mm HDPE Textured Geomembrane Sheet Dam Steep Slope Anti Seepage

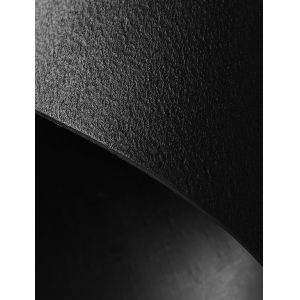

    HDPE Textured Geomembrane


    Quick Detail:


    • material: LDPE,HDPE
    • length: 50m,100m,150m,200m
    • width: 6m~10m
    • thickness: 1.0mm
    • production standard: ASTM,GB, ISO
    • application: Reservoir,landfill

    HDPE Texrured Geomembrane is the impermeable synthetic membrane liner and geotechnical engineering materials which are widely used for solid waste containment, mining and water containment applications.


    HDPE anti-seepage geomembrane with rough surface is a new type of anti-seepage material. Single rough surface and double rough surface increase friction coefficient and anti-skid function, which is more suitable for steep slope and vertical anti-seepage and provides engineering stability.


    Anti-seepage HDPE geomembrana is made from 97.5% high density polyethylene (HDPE) and 2.5% Carbon black/anti-aging agent/anti-oxygen/UV absorbent/stabilizer and other accessory, which is widely used for fishpond, solid waste containment and water containment environment and mining environment. Anti-seepage HDPE geomembrana is made of best quality high density polyethylene (HDPE) with specially formulated and original polyethylene resin, combined with specified quantity carbon black, antioxidant, anti-aging agent and UV resistance components, which contributes to its excellent resistance to UV radiation and being suitable for different conditions.


    It has excellent temperature adaptability, weldability, tolerance and aging resistance, chemical corrosion resistance, environmental stress cracking resistance and anti pierce performance. Therefore, it is especially suitable for underground engineering, mining engineering, sewage and waste residue treatment plant as impermeable materials.



    Advantages:


    • Environmental protection
    • Anti-seepage
    • Anti leakage
    • Moisture-proof
    • Isolation
    • Root resistance
    • Anti puncture


    Product Parameter



    Properties
    TestTest ValueTesting
    MethodFrequency
    30 mils40 mils50 mils60 mils80 mils100 mils120 mils(minimum)
    Thickness mils (min. ave.)D 5994nom. (-5%)nom. (-5%)nom. (-5%)nom. (-5%)nom. (-5%)nom. (-5%)nom. (-5%)per roll
    ·lowest individual for 8 out of 10 values-10%-10%-10%-10%-10%-10%-10%
    ·lowest individual for any of the 10 values-15%-15%-15%-15%-15%-15%-15%
    Asperity Height mils (min. ave.) (1)D 746610 mil10 mil10 mil10 mil10 mil10 mil10 milevery 2nd roll (2)
    Density (min. ave.)D 1505/D 7920.940 g/cc0.940 g/cc0.940 g/cc0.940 g/cc0.940 g/cc0.940 g/cc0.940 g/cc200,000 lb
    Tensile Properties (min. ave.) (3)D 669320,000 lb
    ·yield strengthType IV63 lb/in.84 lb/in.105 lb/in.126 lb/in.168 lb/in.210 lb/in.252 lb/in.
    ·break strength45 lb/in.60 lb/in.75 lb/in.90 lb/in.120 lb/in.150 lb/in.180 lb/in.
    ·yield elongation12%12%12%12%12%12%12%
    ·break elongation100%100%100%100%100%100%100%
    Tear Resistance (min. ave.)D 100421 lb28 lb35 lb42 lb56 lb70 lb84 lb45,000 lb
    Puncture Resistance (min. ave.)D 483345 lb60 lb75 lb90 lb120 lb150 lb180 lb45,000 lb
    Stress Crack Resistance (4)D 5397300 hr.300 hr.300 hr.300 hr.300 hr.300 hr.300 hr.per GRI GM10
    (App.)
    Carbon Black Content (range)D 4218 (5)2.0-3.0 %2.0-3.0 %2.0-3.0 %2.0-3.0 %2.0-3.0 %2.0-3.0 %2.0-3.0 %20,000 lb
    Carbon Black DispersionD 5596note (6)note (6)note (6)note (6)note (6)note (6)note (6)45,000 lb
    Oxidative Induction Time (OIT) (min. ave.) (7)200,000 lb
    (a) Standard OITD 3895100 min.100 min.100 min.100 min.100 min.100 min.100 min.
    — or —
    (b) High Pressure OITD 5885400 min.400 min.400 min.400 min.400 min.400 min.400 min.
    Oven Aging at 85°C (7), (8)D 5721
    (a) Standard OIT (min. ave.) - % retained after 90 daysD 389555%55%55%55%55%55%55%per each
    — or —formulation
    (b) High Pressure OIT (min. ave.) - % retained after 90 daysD 588580%80%80%80%80%80%80%
    UV Resistance (9)D 7238
    (a) Standard OIT (min. ave.)D 3895N.R. (10)N.R. (10)N.R. (10)N.R. (10)N.R. (10)N.R. (10)N.R. (10)per each
    — or —formulation
    (b) High Pressure OIT (min. ave.) - % retained after 1600 hrs (11)D 588550%50%50%50%50%50%50%

    ItemParameter
    Thickness (mm)1.0mm1.25mm1.5mm2.0mm2.5mm3.0mm
    Coarse height(mm)0.25
    Minimum Density ( g/cm3)0.94
    Break strength (N/mm)≧10≧13≧16≧21≧26≧32
    Elongation at break (%)100
    Angle tear load (N)≧125≧156≧187≧249≧311≧374
    Puncture strength (N)≧267≧333≧400≧534≧667≧800
    Environmental stress cracking resistance hr

    300

    Carbon black content (%)2.0-3.0
    Size Stability(%)±2

    HDPE Geomembrane recommend thickness of application


    • Aquaculture (including fish pond, shrimp pond, seaweed farming etc. )
    • normally use 0.25mm~0.5mm
    • Agriculture( including lotus farming, reservoir, drinking water tank, irrigation system etc.) normally use 0.5mm~1.0mm
    • Landscape (including artificial lake, river, slop protection, greening waterproof etc.) normally use 0.5mm~1.0mm
    • Water conservancy ( including dam anti-seepage, strengthen etc.)
    • normally use 0.75mm~1.5mm
    • Roof anti-seepage ( roof planting, roof waterproof, roof garden waterproof etc.)
    • normally use 0.5mm~1.0mm
    • Underground anti-seepage ( including traffic, subway and roadway’s foundation strengthen, workshop waterproof)
    • normally use 0.5mm~1.0mm
    • Environmental protection (including landfill, sewage treatment work, power regulating reservoir, industrial and hospital solid waste)
    • normally use 1.0mm~2.0mm
    • Petrochemical ((including refinery plant, chemical reaction camera, inner liners of setting tank, secondary liner etc. )
    • normally use 0.5mm~1.0mm
    • Mining (including Washing tank, ash yard, dissolution tank, sedimentation tank, bottom anti-seepage of tailings etc.)
    • normally use 1.0mm~2.0mm

    Package
