Product use and characteristics

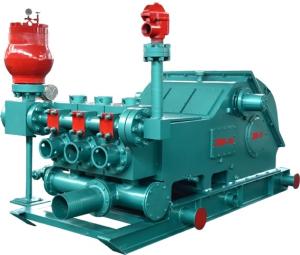

QZNB-2200 mud pump is a horizontal three-cylinder reciprocating
single acting piston pump, driven by diesel engine, equipped with
manual gearshift transmission and wireless remote control. It is
mainly used for matching with more than 200 tons trenchless drill,
and can also be used for other purposes such as grouting, mine
drainage and long-distance water delivery. The pump has eight kinds
of flow rate and eight kinds of pressure, the flow rate and
pressure variation range is large, can be suitable for different
aperture drilling and drag back. The pump is designed in accordance
with the oil drilling pump design code and API standards
Manufacturing, the casing is welded with high strength steel plate,
the connecting rod crosshead is welded with rolling bearing, which
improves the service life than the bearing bush type design. The
cylinder liner is made of bimetallic structure, and the inner
sleeve is made of high silicon and high chromium alloy. The
hardness reaches HRC62° or above, which improves the service life
of parts and reduces the loss of parts and so on.
2200 hp/kw HDD Mud Pump /HDD Mud Recycling System /Oil Rig Mud Pump
Shandong Xinwei Drilling Equipment Co.,Ltd Serial No.: Ex-Date: |
Qingzhou NB-2200 Mud Pump Technical Specification |
Power(kw) | 246 | Stroke Length(mm) | 200 | Reduction Ratio | 3.05 |
Liner Size(mm) | 150 | Flow Rate(L/R) | 12.1 | Rated Stroke(spm) | 200 |
Stroke(spm) | 80 | 100 | 120 | 140 | 165 |
Flow Rate(L/min) | 968 | 1210 | 1440 | 1694 | 2000 |
Pressure(MPa) | 14 | 12 | 9.85 | 7.4 | 6 |
Dimension(mm) | LxWxH:5700x2000x2100 | Weight(kgs) | 8300 |
Shandong XinWEI DRILLING EQUIPMENT Co., Ltd. is one of the most
well-known manufacturers of trenchless equipment and oilfield
equipment in China. After years of unremitting efforts, it has
grown into a small but powerful enterprise. Our products cover the
entire field, trenchless, from a very small spare part to a very
large complete rig system. Our MAIN PRODUCTS are: pump SPARE parts,
mud pumps and complete sets of equipment, DC/AC motor, solid
control equipment, power plant, vehicle drilling rig, workover rig,
land drilling rig, drill pipe and drilling tools, etc. Based on the
needs of customers, to provide customers with the best products and
services. We focus on providing the best solutions for the
maintenance and supply of equipment and spare parts to our overseas
oilfield customers.
We welcome the establishment of win-win cooperation with partners
all over the world, every customer is our God and helper. Warmly
welcome you to visit China!
