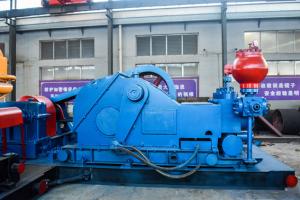

Single Acting Piston Oilfield Reciprocating Mud Pump 1300Hp

Add to Cart

1300 hp/kw 4300*2450*2513 3NB Series Tripiex Mud Pump

3NB-1300泥浆泵技术参数表

型号Model		型式Type		输入功率 Input power			额定泵速 Rated pumpSpeed		冲程长度 Stroke length		齿轮传送比 Gear ratio		主动轮额定转速转/分 Drive Wheel Rated speed R/Min
3NB-1300		三缸单作用 Triplex Single-Acting piston pump		755kw 1300(hp)			125冲/分 Stroke/Min		305mm		4.194		503
吸入管径Dia.of Suction Manifold		排出管径Dia.of Discharge Manifold		外形尺寸(立方毫米) Overall size mm³					重量 Weight(kg)		不含大皮带轮,空气包重(kg) Not including the Big Belt and pulsation Dampener Weight
305mm		101mm		4300×2450×2513					21500		20000
性能参数表
			缸套直径(Cylinder dia) mm
	泵速(冲/分) Pump Speed(Stroke/Min.)		Ф130		Ф140			ф150	ф160	ф170		ф180		ф190
			理论排量(升/秒)Theoratic Displacement(L/S)(GPM)
120			24.28			28.16		32.32	36.78	41.52		46.54		51.86
110			22.25			25.81		29.63	33.71	38.06		42.67		47.54
100			20.23			23.46		26.94	30.65	34.60		38.79		43.22
90			18.21			21.12		24.24	27.58	31.14		34.91		38.89
80			16.19			18.77		21.55	24.52	27.68		31.03		34.57
泵压Pump pressure(Mpa)			35			31		27	24	21		19		17
机械效率按90% Mechanical efficiency as 90%,容积效率按100% Capacity efficiency as 100%.
