10mm Round Lines 2D Wire Bending Machine Flat Iron 50m/Min CNC Wire Forming Machine

    Buy cheap 10mm Round Lines 2D Wire Bending Machine Flat Iron 50m/Min CNC Wire Forming Machine from wholesalers

    Buy cheap 10mm Round Lines 2D Wire Bending Machine Flat Iron 50m/Min CNC Wire Forming Machine from wholesalers
    • Buy cheap 10mm Round Lines 2D Wire Bending Machine Flat Iron 50m/Min CNC Wire Forming Machine from wholesalers

    10mm Round Lines 2D Wire Bending Machine Flat Iron 50m/Min CNC Wire Forming Machine

    Ask Lasest Price
    Brand Name : Jin Hongxiang
    Model Number : J2D-2-6
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100 Sets per Month
    Delivery Time : 5-10 days or negotiation
    • Product Details
    • Company Profile

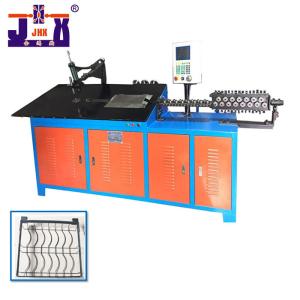

    10mm Round Lines 2D Wire Bending Machine Flat Iron 50m/Min CNC Wire Forming Machine

    2D bending machine can bend round lines and flat iron


    Product Description


    2D forming machine is a plane 2D wire bending forming machine. The forming process of wire shapes with different specifications can be realized through various transformations of molds. There are servo feeding + hydraulic cut-off combination, servo feeding + servo cut-off and full servo combination, which can be selected according to the size of actual products to achieve the highest cost performance. According to the needs of products, chamfering, arc punching, punching and other functions can also be added to achieve wider application and use.

    Multifunctional, achieve dual functions. Molding, punching, one finish


    Widely used in hardware products, such as kitchen and Bathroom Shelves


    2D forming machine, flat iron bending machine, bending machine

    Technical parameter of 2D molding machine


    ModelJ2D-2-6J2D-2-8J2D-2-10JS2D-2-6
    Number axes3334
    Processing line diameter(MM)Hard wire ø2-4Hard wire ø2-6Hard wire ø2-8Hard wire ø2-4
    Flexible wire ø2-6Flexible wire ø2-8Flexible wire ø2-10Flexible wire ø2-6
    Number of delivery wheels (Group)3333
    Control system32-bit high-performance processor, can store 2048 files, programming accuracy 0.0132-bit high-performance processor, can store 2048 files, programming accuracy 0.0132-bit high-performance processor, can store 2048 files, programming accuracy 0.0132-bit high-performance processor, can store 2048 files, programming accuracy 0.01
    Maximum wire speed(M/MIN)80706090
    Movement directionrotating die can be raised and lowered, and the positive and negative motion can be realizedrotating die can be raised and lowered, and the positive and negative motion can be realizedrotating die can be raised and lowered, and the positive and negative motion can be realizedrotating die can be raised and lowered, and the positive and negative motion can be realized
    Wire delivery accuracy(mm)±0.1±0.1±0.1±0.1
    Solenoid valve and quantitynothingnothingnothing3
    Input power380V,50/60HZ380V,50/60HZ380V,50/60HZ380V,50/60HZ

    Product Application Display


    Lighting hardware flat iron products
