    BK7 Grin Rod Lens Collimating Focusing Spherical Cylindrical Lens

    BK7 Rod Lens, Collimating And Focusing Rod Lens

    Overview:

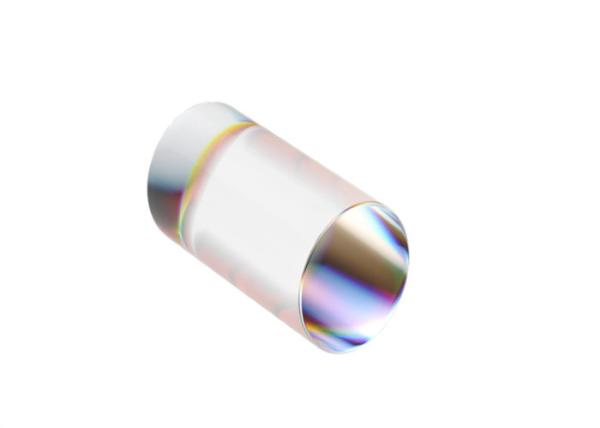

    A rod lens is a cylindrical lens which has the geometrical form of a cylinder with polished on the circumference and ground on both ends. Optical performance is similar to a cylinder lens. Rod lenses can be used, for example, for collimating a divergent beam in one dimension or for focusing light to a line.


    There are also half-rod lenses, which are rod lenses cut into two equal pieces.


    Rod lenses are available with different optical materials. N-BK7 and UV fused silica substrates are available for a variety of UV, visible and NIR applications.


    Rod lenses can have diameters of a few millimeters, but there are also cylindrical microlenses with substantially smaller diameters. Small-diameter rod lenses are frequently used as fast-axis collimators for diode bars.


    Star Optic offers custom sizes, variations in polishing/ ground surfaces and additional coatings are available upon request. We look forward to your inquiry.


    General Specifications Of Rod Lens:

    MaterialN-BK7
    Surface Quality60/40 scratch-Dig
    Diameter Tolerance+0/-0.05mm
    Length Tolerance±0.2mm
    Clear Aperture>90%
    PolishCylinder surface polished, end surfaces ground
    CoatingUnocated, Available

    Standard Products of Rod Lens:

    PN.MaterialDiameter
    (mm)
    Length
    (mm)
    Coating
    ROD0102N-BK71.02.0Uncoated
    ROD0204N-BK72.04.0Uncoated
    ROD0306N-BK73.06.0Uncoated
    ROD0310N-BK73.010.0Uncoated
    ROD0408N-BK74.08.0Uncoated
    ROD0510N-BK75.010.0Uncoated
    ROD0515N-BK75.015.0Uncoated
    ROD0520N-BK75.020.0Uncoated
    ROD1020N-BK710.020.0Uncoated
