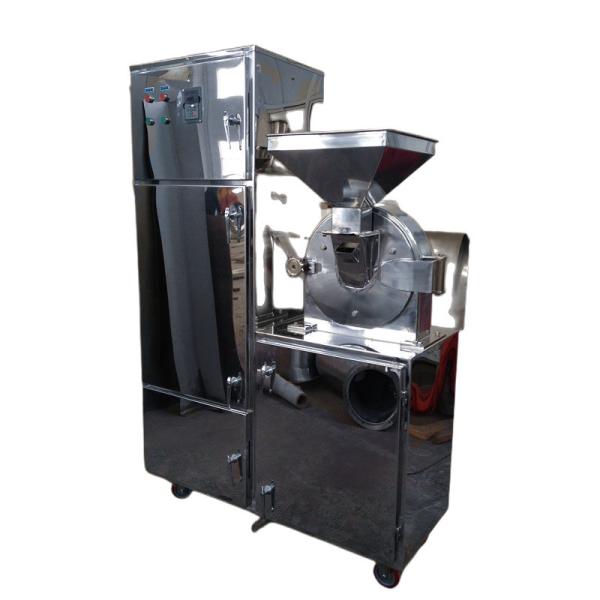

800kg/H 30B Dust Collecting Crusher Set Universal Pulverizer Machine In Pesticide Industries

30B Dust Collecting Crusher Set Universal Pulverizer Machine In Pesticide Industries

30B Series Dust Collecting Crushing Set Pulverizer Machine Specifications

The machine(set) is extensively used in pharmaceutical, chemical food and pesticide industries for pulverzing dry brittle materials.

1. The Universal pulverizer may be widely applied in industries, such as medicine, chemical and food,etc., for grinding of dry and fragile materials. Materials with low softening point and big viscosity are not appropriate for this machine.

2. Components of this machine which have contact with materials to be crushed are all made of stainless steel with good anti-corrosive property. The housing is in a full enclosure for the convenience of cleaning. The interior walls are all treated to achieve evenness and smoothness of the surface, thus to ensure production of such materials as medicine, food and chemical in better conformity with the national "GMP" standard.

this machine is a new generation coarse crushing equipment combining crushing and dust collection as a whole.By means of relative motion between movable and fixed fluted discs, material is crushed through impact and friction of teeth and impact among material. The crushed material is entered into the catcher automatically under the effect of rotating centrifugal force, and the dust is filtered and recovered by dust collector through a bag.Designed according to GMP standard and wholly made of stainless steel, this machine has no flying dust during production, and can improve the utilization rate of material and reduce the cost of enterprise, thus reaching the international advanced level.

Technical parameters

Model	20B/20B (set)	30B/30B (set)	40B/40B (set)	60B/60B (set)
Productive capacity (kg/h)	60-150	100-300	160 800	500 ~ 1500
Revolution of spindle (r/min)	4500	3800	3400	2800
Size of fed material {mm}	6	10	12	15
() Grinding size (mesh)	60-120	60-120	60-120	60-120
Power of motor (kw)	4	5.5	11	15
Fan power(kw)	0.55	0.75	1.1	2.2
Weight(kg)	250	320	550	680

Notes:the outputs in list are only for reference, dur to the differences of material and the wanted sizes.

Working Principles

This device makes use of the relative motion of moved fluted disc and fixed fluted disc to grind materials by the impact and friction of cogs and the materials impact on each other. The grinded materials will enter into collector automatically by the action of rotating centrifugal force; and the dust will be filtered and discharged by cloth-bag. This device is designed with the “GMP” standard and is made of stainless steel. And no dust flying during producing. Currently, it has achieved international advanced level.

Purpose

This device, a new generation of grinder equipment combining crushing and dust collection as a whole, is suitable for pharmacy,chemical, food , etc.
