Sidestream Anesthesia Multi-function Gas Module SAG-05
Sidestream Anesthesia Gas Module Quick Details:
Sidestream Anesthesia Gas Module, simultaneously measure the
concentration waveform and data of carbon dioxide, nitrous oxide
and anesthetic gas, as well as respiratory rate. The types of
anesthetic gas measured include halothane, enflurane, isoflurane,
sevoflurane and desflurane. The user can manually select the type
of anesthetic gas. This mainstream anesthesia gas module SAG-05 is
perfect matched with our 15 inch ICU cardiac monitor or Cardiac
patient monitor.
Features:
1. Reliable multi gas OEM solution
Equipped With Oxygen Battery as optional. Reliable multi gas OEM
solution, compatible with a variety of protocols, so that your
products can be quickly upgraded and assembled.
2. Sidestream Mode
Can simultaneously measure the concentration waveform and data of
carbon dioxide, nitrous oxide and anesthetic gas, as well as
respiratory rate. The types of anesthetic gas measured include
halothane, enflurane, isoflurane, sevoflurane and desflurane. The
user can manually select the type of anesthetic gas.
3. Plug And Play
The host does not need internal circuit, just a serial port. The
data can be measured within 4 seconds after power on. It is
suitable for adults, children and newborns, with excellent cost
performance and low cost.
4. Automatic Pressure Compensation
There is an atmospheric pressure sensor inside, which is suitable
for various altitude ranges. High-precision. Careful selection of
infrared devices, hardware design and software algorithm, to
achieve high signal-to-noise ratio, to ensure the measurement
accuracy for temperature range of - 5-50 °C and in the range of 0 -
20%.
Hung-Kee
Anesthesia Gas Module brochure 2022.11.pd...
Sidestream Anesthesia Gas Module Technical details:
| Temperature | -5~50℃ |
| Relative humidity | 10-90%(Non-condensing) |
| Atmospheric pressure | 55-115kpa |
| Power consumption | 150ma |
| Port and protocol | RS-232/ Standard E-8-1,38.4 kBaud,10 ms data interval (KM) or
Customized according to customers' requirements |
| Co2 Measuring Range | 0~150mmHg |
| Accuracy | 0~40mmHg, inaccuracy≤± 2mmHg；
41~70mmHg, inaccuracy≤±5% of Reading；
70~100mmHg, inaccuracy≤± 8% of Reading；
101~150mmHg, inaccuracy≤±10% of Reading； |
| N₂O |
| Measuring range | 0~100% |
| Inaccuracy | ±(2vol%+ 2% of Reading) |
| HAL, ENF, ISO |
| Measuring range | 0-12% |
| Inaccuracy: | For 0~8%, ±(0,2 vol% + 5% of Reading) |
| For 8~12% | Unspecified |
| SEV |
| Measuring range | 0~15% |
| Inaccuracy: | For 0~10%,±(0,2 vol%+5% of reading) |
| For 10~15% | unspecified |
| DES |
| Measuring range | 0~25%； |
| Inaccuracy: | For 0~18%,±(0,2 vol%+5% of reading); For 18~25%, unspecified. |
| Respiration Rate Range | 2~150 t/min |
| Inaccuracy | the bigger value of ±1% or 1t/min |
Sidestream Anesthesia Gas Module Description:
Our Anesthetic Gas Detector/Module can simultaneously measure the
concentration waveform and data of CO2, N2O,anesthetic gas, as well
as respiratory rate. The types of anesthetic gases measured include
halothane, enflurane, isoflurane, sevoflurane and desflurane. The
user can manually select the type of anesthetic gas.

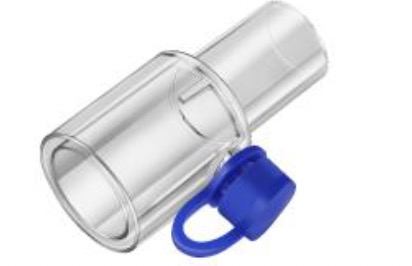

Sidestream Anesthesia Gas Module Accessory:
Multi-gas filter, sampling tube, nasal oxygen tube
