    Industrial Thermostat Temperature Controller 110V 220V For Infrared Gas Burner

    Ask Lasest Price
    Brand Name : THD
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10pcs/week
    Delivery Time : 5~10 workdays
    • Product Details
    • Company Profile

    Industrial Thermostat Temperature Controller 110V 220V For Infrared Gas Burner


    Product Name: Industrial Thermostat Temperature Controller 110V 220V For Infrared Gas Burner


    We can customize thermostat according to your requirement, it can control 1~40pcs gas burners.


    Thermostat outside :


    burner controller

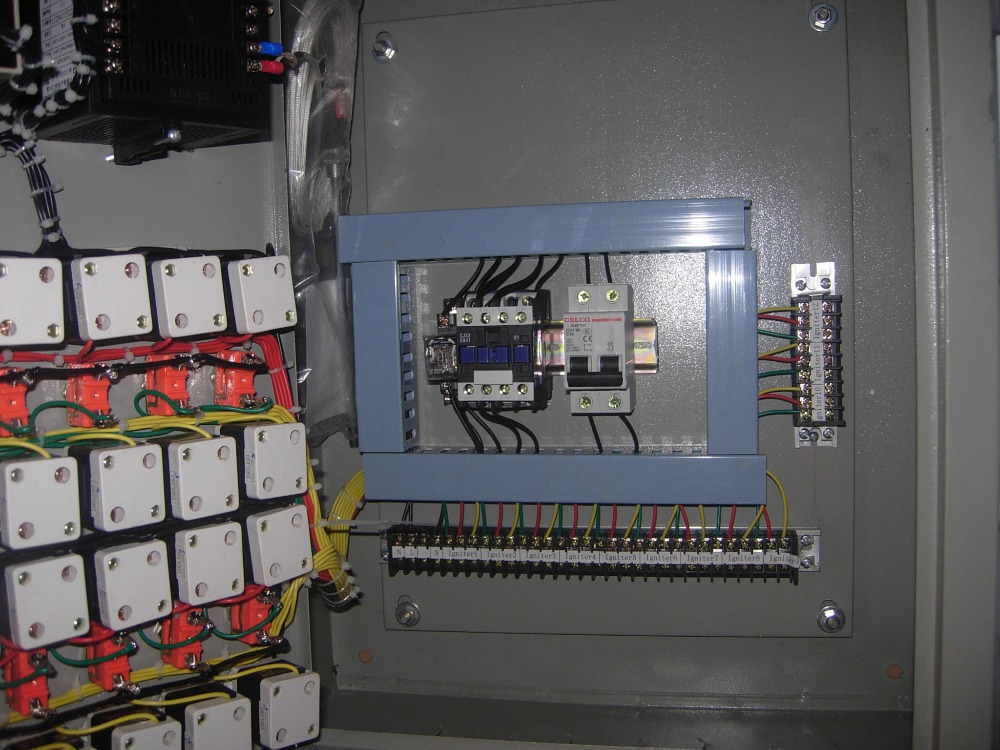

    Thermostat inside :


    burner controller


    I Working Purpose


    The thermostat controls gas heater/burner to keep stable temperature and save gas.


    When reaches setting temperature, the thermostat controls gas burner/heater stop working;

    While under setting temperature, the thermostat controls gas burner/heater start working again.


    II Composition of Thermostat


    It includes a thermocouple, a adjustable temperature controller, powder switch, ignite switch, working indicator and alarm.

    One thermostat can control 1~40sets gas heater/burner.


    III Working Principle


    1. Open gas cylinder → adjust gas pressure to 3000~5000pa → turn on the main power of electric


    controller → setting required temperature → turn on ignition switch→Solenoid valve supply gas /


    3 pins ignite gas burner/heater → gas burner/heater working normally.


    2. Thermocouple detect temperature → reach setting temperature →


    Half or all gas burner stop working → lower than setting temperature →


    Ignition automatically by controller → Gas burners restart working.


    IV Flameout Protection


    When 3 pin failed ignite infrared burner/heater, pulse igniter will control solenoid valve stopping supply gas. So it avoids gas leakage.


    Restart ignition: turn on ignition switch again.


    V Connection

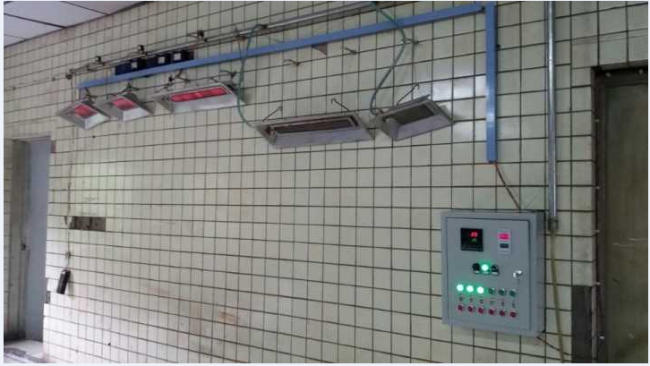

    VI Installation system
