    Automatic 0.75KW Universal Tensile Tester , Anticorrosive Ultimate Testing Machine

    Ask Lasest Price
    Brand Name : lixian
    Model Number : HZ-1009C
    Certification : ROHS/CE/ISO9001
    Price : negotiate
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : negotiate
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    Automatic 0.75KW Universal Tensile Tester , Anticorrosive Ultimate Testing Machine

    1KN - 200KN High-Low Temperature Universal Testing Machine Manufacturers HZ-1009C

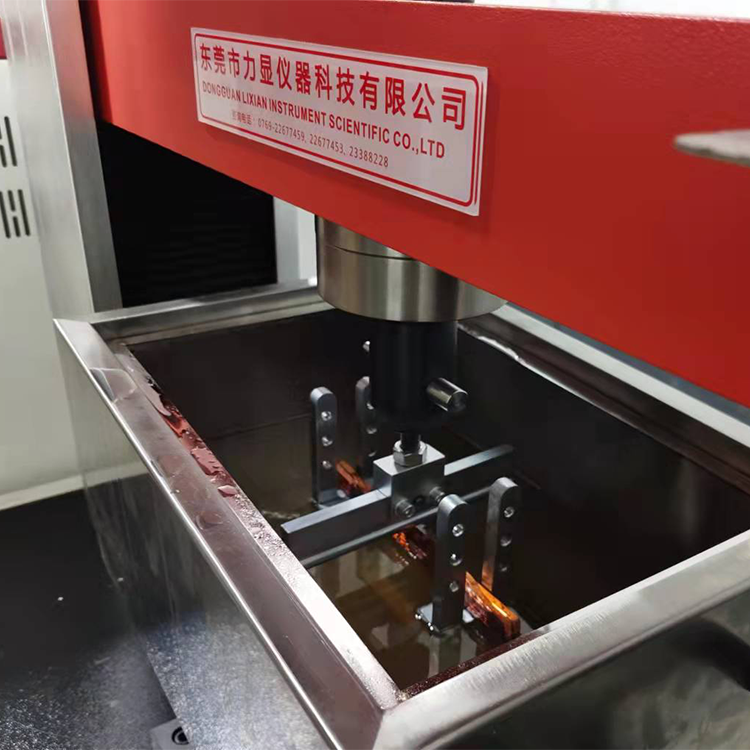

    IHigh-low temperature universal testing machine HZ-1009C manufacturers is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement. Has high accuracy and sensitivity for the load, displacement measurement and control, it also can be tested the constant-velocity loading, constant- velocity displacement.


    Universal Testing Machine Main function:
    Universal testing machine manufacturers HZ-1009C mainly applied to test the force of metallic and non-metallic materials in the high or low temperature environment, the force such as tension, compression, bending, shear, peel, tear or two-points extensions and others., the material such as rubber, plastic, wire and cable, optical fiber and cable, safe belt, leather belt composite materials, plastic profiles, waterproof membrane, steel, copper, profiles, spring steel, bearing steel, stainless steel (as well as other high-hardness steel), castings, plate, strip, non-ferrous metal wire.


    Universal Testing Machine Corresponding standard:
    GB/T16491, GB/T 4338, GB/T 6037, GB/T 2951, GB/T 13239, GB/T 2039, HB 5150, HB 5195, HB 5211, HG/T 3868, ASTM D2295, JIS H7601-2, JIS R1606, NF EN 12814-6, BS EN 12814-6


    Universal Testing Machine Technical parameter:
    ModelHZ-1009C
    Maximum load2ton, 5ton, 10ton, 20 ton option
    Accurate grade1grade /0.5 grade
    Effective measuring range0.2%100% (1 grade) / 0.4%100% (0.5 grade)
    Measuring accuracythe value ±1% / the value ±0.5%
    Tester resolutionMax load 1/200000, regardless of inside and outside, constant the resolution
    Load sensorBasic configuration:sensor(max load): one
    Effective testing width400mm (can be customized)
    Effective tensile stroke1000mm; 1200mm; 1400mm (can be customized)
    Range of testing speed0.001500mm/min
    Accuracy of displacement measurementTolerance: ±0.5%/ tolerance: ±0.2%
    Deformation of measured systemMin span: 10mm, Max range of deformation: 800mm
    Extended deformation span: 25mm, 50mm, 100mm, Max range of deformation: 5mm, 10mm, 25mm
    Accuracy of measured deformationTolerance: ±0.5% (according to requirement of customer to choose the larger or small deformation)
    SafetyElectronic-limit protection
    Testing platform moving deviceFast /slow two speeds to control, can jog
    Return backManual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation
    Overload protectionOverload 10%, automatic protection
    FixtureAccording to customer's need
    Machine size107*56*210cm (length*width*height)
    MotorPanasonic AC servo motor and drive
    Temperature range20°C300°C
    Form of temperature displayDigital display 4 digits
    Inside space360*360*600mm
    Cooling systemCompressor from France Tecumseh
    Power supply220V, 50HZ
    Power0.75KW (depending on different demand of force, using different motor)
    Weight(about) 320Kg
    UnitKg, N, LB, TON can be exchanged.










    High And Low Temperature Universal Testing Machine...
