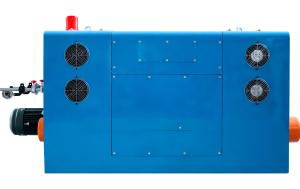

Φ300mm PLC high speed buncher hot sale automatic copper automatic cable with meter counting wire spool twisting machines

Φ300mm PLC high speed buncher hot sale automatic copper automatic cable with meter counting wire spool twisting machines

Application

Suitable for copper wire stranding of Power cable,Lan cable,Automatic cable,Electrical wire,Date cable,Earphone cable etc.Apply for the twisting of above seven pcs of bare wires,tinned wires,sliver jacket wires and enameled wires etc

Φ300mm PLC high speed buncher hot sale automatic copper automatic cable with meter counting wire spool twisting machines

Specification

1.Inlet wire dia:Φ0.03mm-Φ0.10mm

2.Bunched wire size:0.035-0.45mm²

3.Lay length: 1.27mm-12.55mm(adjustable according to customer requirement)

4.Operation direction:“S” /“Z”

5.Take up bobbinsize:Φ300mm

Φ300mm PLC high speed buncher hot sale automatic copper automatic cable with meter counting wire spool twisting machines

6.Rotating speed:Max.3000RPM/min

7.Motor:3HP AC motor+converter

8.Tension control:Taking up tension is controlled by magnetic powder clutch,PLC follows up and regulates tension, constant tension

9.Protection:Automatically brake/stop

1)Wire inside and outside is broken

2) The preset length is arrived

10.Brake mode:Electromagnetic brake

Φ300mm PLC high speed buncher hot sale automatic copper automatic cable with meter counting wire spool twisting machines

11.Traversing method:Rolling wire with ring drive units, row pitch and breadth are adjustable

12.Operation type:push button

13.Bobbin shifting:Manual hydraulic lifting

14.Touch screen method:Touch screen+ Siemens PLC+ Magnetic powder clutch, ensure constant tension from empty to full bobbin

Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.

The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.

Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.

Our company upholds the spirit of “Honesty-based, Quality-based” enterprise, and continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the “High-quality and High-efficiency” business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory products and service.
