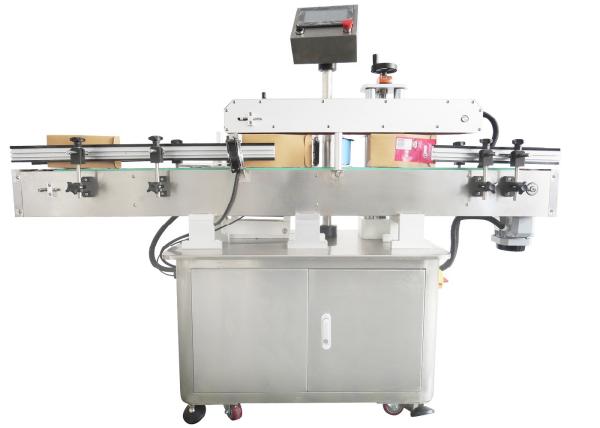

YM610 Auto Nut Square Jar One Side Labeler For Spray Tapered Bottle Sauce
Box Labeling Machine
The side labeling machine, also known as the "square bottle single side
labeling machine", is widely used in various industries for labeling single-sided
square or rectangular containers.
Some of the key product features of a side labeling machine include
its high
labeling accuracy, adjustable
labeling speed, and user-friendly interface. It is capable of labeling containers
with various label materials, such as paper, PET, PVC, and more.
Additionally, it can also be used for hot stamping coding and
printing production date and batch
number.
Overall, the side labeling machine offers a reliable and efficient
solution for labeling square or rectangular containers, helping to
improve production efficiency and product quality.
Function:
1, Machine for automatic labeling on any shape (round or square)
bottles for the pharmaceuticals, daily chemicals, food & beverages
industries.
2, Machine can bottle one face labeling, or one label wrap three
sides, and others.
3, The labeler automatically detects label size, machine sensor
will pick up bottle, and stick label on bottle. worker can choose
saved parameters, a very useful feature for users with multiple
products to label.
4, It is an optimal combination of speed, accuracy, stability, GMP
standards, ease of use, and flexibility.
5, PLC and HMI control system are all English, easy operation,
servo motor for label feeding power.
6, High labeling accuracy, fast labeling speed, long-time using.
7, Transparent sensor and deta code printer are all optional.
8, Backed by a strong engineering team who is ready to provide
custom solutions for the unique production needs of different
customers and after-sales service.
Technical parameter:
| Model | YM610 |
| Capacity (PCS/min) | 0-100(depond on bottle and label size) |
| Conveyor running side | from right to left / from left to right |
| Conveyor speed(meter/min) | ≤30 |
| Labeling error | ＜ ±0.6 mm |
| The inner diameter of label roll | 75 mm |
| The outer diameter of label roll | 350 mm(max) |
| Suitable for label size | W:5-210mm, L:10-400mm |
| Suitable size of labeling objects | any size bottle(jar,box and so on) |
| Power supply(In China) | AC220V 50/60HZ 1ph (customized) |
| Power | 1KW |
| Weight | 500 KG |
| Machine size | 2550(L) 1100 (W) 1650 (H) mm |
Machine Drawing:
Main Configuration:
| N0. | Name | Brand |
| 1 | PLC | Mitsubishi (Japan) / Siemens(Germany) |
| 2 | HMI | WEINVIEW (Taiwan) / Siemens(Germany) |
| 3 | Servo motor | KINCO (Germany) / Raynen (China) |
| 4 | Frequency changers | Delta(Taiwan) / Siemens(Germany) |
| 5 | Detection bottle sensor | KEYENCE (Japan) / BOJKE (China) |
| 6 | Detection label sensor | FOTEK(Taiwan) / SICK (Germany) |
| 7 | Stainless steel material | 304SS |
| 8 | Aluminium alloy | Surface anode gush arenaceous technology |
