Single PCB 380A Dc Inverter Mma Welding Machine IGBT Module 400F

    Buy cheap Single PCB 380A Dc Inverter Mma Welding Machine IGBT Module 400F from wholesalers

    Buy cheap Single PCB 380A Dc Inverter Mma Welding Machine IGBT Module 400F from wholesalers
    • Buy cheap Single PCB 380A Dc Inverter Mma Welding Machine IGBT Module 400F from wholesalers

    Single PCB 380A Dc Inverter Mma Welding Machine IGBT Module 400F

    Ask Lasest Price
    Brand Name : JONE
    Model Number : MMA-400F 500F 630F
    Certification : ISO9001,CE,CCC
    Price : Negotiate
    Payment Terms : L/C, T/T, Western Union,, D/A, D/P
    Supply Ability : 3 thousand pieces per year
    Delivery Time : 30days
    • Product Details
    • Company Profile

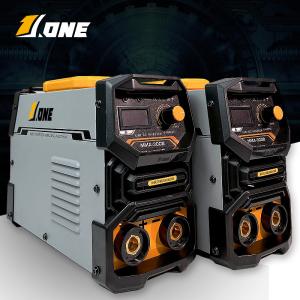

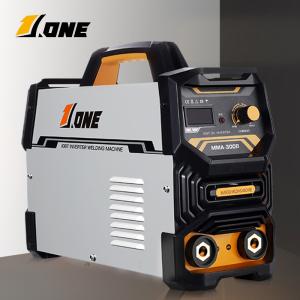

    Single PCB 380A Dc Inverter Mma Welding Machine IGBT Module 400F

    precio las maquinas de soldar soldadora electrica inverter IGBT MINI welding machine mma MINI inverter welding machine

    Description

    • We are proud to introduce the inverter arc welding machine. This series is IGBT inverter DC MMA welding machine with single PCB technology, with 3 phase 380V AC power supply, which adapts to the input voltage automatically with robust design and thermally protected. Machine is small and lightweight while welding performance is powerful.


      This series adopts the most advanced inverter technology, ensuring superior welding performance, nice welding result and minimum post-welding treatment. It features energy saving and multiple functions including portability and user friendly operation.

    • In addition to the above requirements for the seam, component thickness also plays a role when selecting the welding process. Components less than one millimeter thick cannot be welded with an electrode, but if the component is thicker than four millimeters, TIG welding is considered uneconomical. The MIG/MAG process, on the other hand, can be used for anything from ultra-light gage sheets to solid steel plates.

    Features

    • excellent welding performance

    • One machine for dual use, satisfied with the variety of welding requirements

    • the fan stops automatically

    ​​MMA inverter welder characteristics

    • The welder also has wide range of welding current adjustment, under high-speed welding performance excellent, stable. It also has multiple protection functions: output short-circuit protection, overheat protection, inverter overcurrent or overvoltage protection.
    ModelMMA-400FMMA-500FMMA-630F
    TypeIGBT MODULEIGBT MODULEIGBT MODULE
    Real Amp(A)280380530
    AC Input Voltage(V)380V380V380V
    Rated Input Power Capacity(KVA)151515
    Input Frequency(Hz)50/6050/6050/60
    Non-load Voltage(V)777777
    Output current range(A)20-40020-50020-630
    Rated Duty Cycle(%)60%60%60%
    Efficiency(%)85%85%85%
    Class of InsulationFFF
    Protection class of caseIP21IP21IP21
    Electrode diameter (mm)1.6-5.01.6-5.01.6-5.0
    Quick joint Size(mm)35-5035-50 plate quick joint35-50 plate quick joint
    Input power cable(m)1.81.81.8
    N.W./G.W.(kg)9.3/12.310.3/12.313.5/15.5
    Machine Size(LxWxH mm)480*215*380480*215*380480*215*380
    Package(LxWxH mm)540*295*425 kraft paper box+ foam540*295*425 kraft paper box+ foam540*295*425 kraft paper box+ foam
    Accessories2M 35m2 300A holder2M 50m2 500A holder2M 50m2 500A holder
    2M 35m2 300A Clamp2M 35m2 300A Clamp2M 35m2 300A Clamp
    Brush,Mask,ManualBrush,Mask,ManualBrush,Mask,Manual

    Advantages Of Electric Welding Machine

    • Welding machine is not only for welding, but also for heating-trolling and squeeze out oil. Its suitable for working in dry environment, does not need too many requirements and easy to operate as dryer welding Machine

    FAQ

    Q:What kind of welding machines warranty do you have?
    A:We provide a 1-year warranty to most of our welding machines product. For more information, please send the product model and send an email to us.


    Q:Do you have quality assurance and certificates?

    A:Yes, every machine is tested 5 times before it is born and at least 20 minutes before shipping. Strict quality control is performed in every procedure from material sourcing, processing and testing to packaging.And we have certificates if you want it, contact us and give us your E-mail address we will send you.


    Q:Is OEM and ODM service available ?

    A:Yes, as what you like.
