Radio Shuttle Racking
Explosion-proof
Strong bearing capacity, easy installation, expansion space &
durability.
This product is a shuttle racking system after explosion-proof
transformation. All components meet explosion-proof requirements
and have obtained explosion-proof certification.
The shuttle racking system is a high-density storage system that
uses shuttles to automatically carry loaded pallets on the rail
tracks in the rack. The radio shuttles are remotely controlled by
an operator. There is an optimum use of storage space, and
workplace safety is well maintained because the forklift doesn’t
need to be driven in the racks or aisles between racks, therefore,
maintenance costs are reduced for the sake of less damage of the
racks.The shuttle racking system can work either as First in, First
out (FIFO) or as Last in, First out (LIFO).
Explosive Proof Shuttle Racking · Warehouse Storage Rack · Made In
China
Product Advantage
——
1) Meet Explosion-Proof Requirements
Material selection and processing according to explosion-proof
requirements,All components meet explosion-proof requirements and
have obtained explosion-proof certification.
2) The storage area is installed in strict accordance with
explosion-proof requirements.
3) Built In Safety Feature
Built in safety feature like pallet guide centralizers, rail end
stoppers, photoelectric sensors, etc.
4) Cost Effective And Time-Saving
Forklifts are not required to enter the racking area, shuttles can
work continuously while operator handles the pallet with forklift.
Compared with other types of shelves, the overall investment is
less, for example: warehouse lighting requirements.
5) High-Density Storage
Maximum floor space utilization, the aisle for forklift in
selective racks is eliminated, space utilization increased almost
100%.
6) Secure Storage And Pickup
Forklifts are not required to enter the racking area, Low level of
risks or damage to the racks and operating staff.
7) Strong Bearing Capacity: Up To 1.5t Above
8) Strong Bearing Capacity: Up To 1.5t Above
For FIFO, the warehousing end can be easily switched, when all the
goods in the roadway are not taken out, the warehousing can be
moved with one key for convenient operation.
LIFO Handling – Ideal for durable product without a use by date,
improves productivity, increases the warehouse capacity.
FIFO Handling – Ideal for perishable goods, requires two aisles
(one for loading, one for unloading).
9) The pallet configuration can go up to 40m deep in the lane
10) Strong & Durable, Beautiful Rust Proof,Easy Installation And
Maintenance
The shelves are made of cold-rolled steel material, which is
electrostatic sprayed after pickling and phosphating at high
temperature.
Explosive Proof Shuttle Racking · Warehouse Storage Rack · Made In
China
Structural Principles
——
Radio shuttle racking system is a semi-automated, high-density
pallet storage solution, working with radio shuttle cart and
forklift.
With a remote control, operator can request radio shuttle cart to
load and unload pallet to requested position easily and quickly.
Explosive Proof Shuttle Racking · Warehouse Storage Rack · Made In
China
CASE
—
Explosive Proof Shuttle Racking · Warehouse Storage Rack · Made In
China
Explosive Proof Shuttle Racking · Warehouse Storage Rack · Made In
China

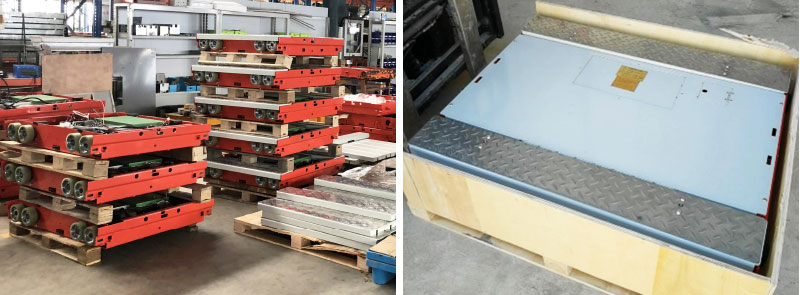

Production Scenarios
——
Explosive Proof Shuttle Racking · Warehouse Storage Rack · Made In
China
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large
steel group of high quality carbon steel, durable and strong, to
ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding
joint has good cracking resistance, small welding deformation,
beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional
personnel with professional technology and cut by professional
equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal,
phosphating, powder, and then in high temperature oven baking
molding, wear-resistant, rust proof. |
