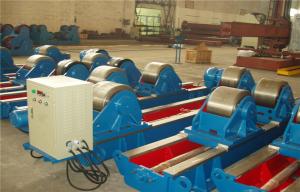

H-welding Machinery Lead Screw welding rotators turning roll wheels
high exactitude welding rotator
Brief Introduction:
- The lead screw adjusting rotator is suitable for circular pipe /
tank / vessel welding;
- The distance between wheels can be adjusted by lead screw.
- There are several specifications for customer to choose from and we
also accept customization according to customer’s requirements.
The distance between two rollers can be adjustable by manual
control of lead screw, to accommodate work-piece of variable
diameters. The equipment features in good adaptation, smooth
revolve, VFD adjustable revolve speed and displaying in linear
speed, which is suitable for welding, polishing, assembly for
pipe/tank/vessel longitudinal and transverse seam welding.
Our company also can customize welding rotator in all varieties
according to client's requirements.
Applications:
It used in many industries such as pressure vessel, boiler,
freezing equipment, power station construction, metallurgical,
engineering machinery, marine building, and petro-chemical
industries etc.
Datasheet:
| Model | CHGK2 | CHGK5 | CHGK10 | CHGK20 | CHGK40 | CHGK60 |
| Max Loading (T) | 2 | 5 | 10 | 20 | 40 | 60 |
| Suitable Workpiece Diameter | Min. (mm) | 150 | 250 | 300 | 400 | 500 | 600 |
| Max.(mm) | 1800 | 2500 | 3000 | 3500 | 4500 | 5000 |
| Roller Dia. (mm) | 200 | 250 | 300 | 350 | 400 | 450 |
| Linear Speed (mm/min) | 100-1000 |
| Speed Control | VFD |
| Motor Power (Kw) | 2*0.18 | 2*0.37 | 2*0.55 | 2*1.1 | 2*1.5 | 2*1.5 |
Note: For 2-100T roller is steel and rubber combination roller.For
100-500T roller is made of whole steel roller or imported rubber.
Competitive advantage:
1. Main electric elements are Siemens/Schneider.
2. VFD rotary speed control, improving the reliability of
operation.
3. Steel and rubber roller or PU roller which can ensure a long
time using.
4. With lubrication system.
5. Accept testing before delivery.
6. Accept special design and custom
