H-welding Machinery welding rotator machine adjust by lead screw
60tons welding rotators
Simple Introduce:

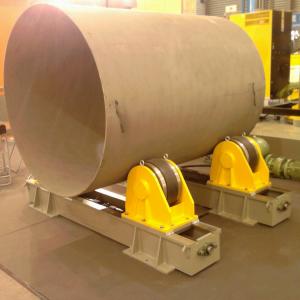

CHGK series welding rotator is lead-screw adjustable welding
rotator.The distance between two rollers can be adjustable by manual
control of lead screw, to accommodate work-piece of variable
diameters. The equipment features in good adaptation, smooth
revolve, VFD adjustable revolve speed and displaying in linear
speed, which is suitable for welding, polishing, assembly for
pipe/tank/vessel longitudinal and transverse seam welding.
Our company also can customize welding rotator in all varieties
according to client's requirements.
Applications:
It used in many industries such as pressure vessel, boiler,
freezing equipment, power station construction, metallurgical,
engineering machinery, marine building, and petro-chemical
industries etc.
Specifications:
Type | Max loading (kg) | Range of suitable work piece(mm) | Dia. and width of the wheel(mm) | roller linear velocity(m/h) | Power of motor(kw) | Adjustable mode for space | Way of setting |
Rubber rollers | Metal rollers |
HGK-2 | 2000 | Φ200-1200 | Φ200×100 | 2×Φ190×16 | 6-60 | 2×0.18 |
Manual screw adjustment or bolt shift |
AC converter stepless speed adjust
|
HGK-5 | 5000 | Φ250-2300 | Φ250×100 | 2×Φ240×20 | 6-60 | 2×0.37 |
HGK-10 | 10000 | Φ300-2800 | Φ300×120 | 2×Φ290×25 | 6-60 | 2×0.55 |
HGK-20 | 20000 | Φ500-3500 | Φ350×120 | 2×Φ340×35 | 6-60 | 2×1.1 |
HGK-40 | 40000 | Φ600-4200 | Φ400×120 | 2×Φ390×45 | 6-60 | 2×1.5 |
HGK-60 | 60000 | Φ750-4800 | Φ450×120 | 2×Φ440×60 | 6-60 | 2×2.2 | Bolt shift |
HGK-80 | 80000 | Φ850-5000 | Φ500×120 | 2×Φ490×70 | 6-60 | 2×3 |
HGK-100 | 100000 | Φ1000-5500 | Φ500×120 | 2×Φ490×100 | 6-60 | 2×4 |
HGK-150 | 150000 | Φ1100-6000 | / | Φ620×220 | 6-60 | 2×4 |
HGK-250 | 250000 | Φ1100-7500 | / | Φ660×260 | 6-60 | 2×5.5 |
HGK-400 | 400000 | Φ1100-7500 | / | Φ750×320 | 6-60 | 2×7.5 |
HGK-500 | 500000 | Φ1100-7500 | / | Φ750×400 | 6-60 | 2×11 |
Note: For 2-100T roller is steel and rubber combination roller.For
100-500T roller is made of whole steel roller or imported rubber.
Competitive advantage:
1. Main electric elements are Siemens/Schneider.
2. VFD rotary speed control, improving the reliability of
operation.
3. Steel and rubber roller or PU roller which can ensure a long
time using.
4. With lubrication system.
5. Accept testing before delivery.
6. Accept special design and custom.
