Small arduino load cell 2kg weight sensor for arduino 20N load sensor

Name: Small arduino load cell 2kg weight sensor for arduino 20N load sensor
Brand: Forsentek
Price: 1 USD

Ask Lasest Price
Brand Name :	Forsentek
Model Number :	FMZT
Payment Terms :	T/T,Western Union or Paypal
Supply Ability :	48200pcs/month
Delivery Time :	3~25 working days
Certification :	CE

Add to Cart

Product Details
Company Profile

Small arduino load cell 2kg weight sensor for arduino 20N load sensor

Small arduino load cell 2kg weight sensor for arduino 20N load sensor

arduino load cell
Features

Aluminum construction,light weight
Miniature size,high accuracy
1000 ohms resistance,low heat emission compared to 350 ohms version
Suitable for arduino based applications
Low cost weight sensor
Load cell sensor can be modified or customized according to clients' requirements

Specifications

Rated capacity	2kg(20N/2.2 lbs)
Rated output	0.7 mV/V
Excitation	3-6 V
Zero balance	±0.1mV/V
Nonlinearity	±0.1% of R.O.
Hysteresis	±0.1% of R.O.
Nonrepeatability	±0.1% of R.O.
Creep(2min)	±0.1% of R.O.
Safe overload	150% of F.S.
Ultimate overload	200% of F.S.
Compensated temperature	0...+25^oC
Operating temperature	-10...+40^oC
Temperature shift zero	±0.2% of R.O./^oC
Temperature shift span	±0.01% of R.O./^oC
Input resistance	1000±100 ohms
Output resistance	1000±10 ohms
Insulation resistance	>2000M ohms
Ingress protection	IP50
Material of element	Aluminum alloy
Cable	32AWG*50mm(Longer cable available)
Wiring code	Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal-

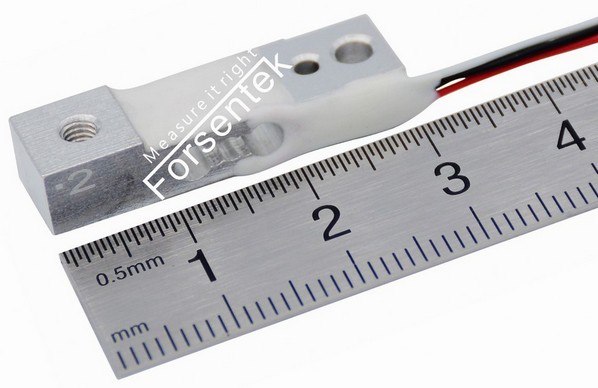

Small size load sensor 2kg Miniature weight transducer 20N

small load sensor 2kg

Load cell dimensions

20N load cell 2kg

Click here to download datasheet
