    Integrated Circuit Chip STM32H725VEH6 STM32H7 ARM Microcontroller - MCU

    Integrated Circuit Chip STM32H725VEH6 STM32H7 ARM Microcontroller - MCU


    Product Description

    STM32H725VEH6 high-performance MCU is based on the high-performance Arm® Cortex®-M7 32-bit RISC core and operates at up to 400MHz. The Cortex-M7 core has floating-point unit (FPU) precision and supports Arm double-precision (IEEE 754 compliant) and single-precision data processing instructions and data types.

    The MCU uses high-speed embedded memory with up to 2MB of dual-area flash memory, 1MB of RAM (including 192KB of TCM RAM, 864KB of user SRAM, and 4KB of backup SRAM). In addition, the device features a variety of enhanced I/O and peripherals connected to the APB bus, AHB bus, 2x32-bit multi-AHB bus matrix, and multi-layer AXI interconnects that support internal and external memory access.

    The device features three ADCs, two DACs, two ultra-low-power comparators, a low-power RTC, a high-resolution timer, 12 general-purpose 16-bit timers, two PWM timing for motor control , five low-power timers, and a true random number generator (RNG). The device supports four digital filters for external sigma-delta modulators (DFSDMs) and features standard and advanced communication interfaces.


    Features

    • 32-bit Arm® Cortex®-M7 CPU with DP-FPU, L1 cache: 32-Kbyte data cache and 32-Kbyte instruction cache allowing 0-wait state execution from embedded Flash memory and external memories, frequency up to 550 MHz, MPU, 1177 DMIPS/2.14 DMIPS/MHz (Dhrystone 2.1), and DSP instructions
    • Up to 1 Mbyte of embedded Flash memory with ECC
    • Flexible external memory controller with up to 24-bit data bus: SRAM, PSRAM, SDRAM/LPSDR SDRAM, NOR/NAND memories
    • 2 x Octo-SPI interface with XiP
    • 2 x SD/SDIO/MMC interface
    • 1.62 V to 3.6 V application supply and I/O
    • POR, PDR, PVD and BOR
    • Dedicated USB power
    • Embedded DCDC and LDO regulator(*)VFQFPN68 variant is DCDC only
    • Internal oscillators: 64 MHz HSI, 48 MHz HSI48, 4 MHz CSI, 32 kHz LSI
    • External oscillators: 4-50 MHz HSE, 32.768 kHz LSE

    Applications:

    • Motor drive and application control

    • Medical equipment

    • Industrial applications: PLC, inverters, circuit breakers

    • Printers, and scanners

    • Alarm systems, video intercom, and HVAC

    • Home audio appliances

    • Mobile applications, Internet of Things

    • Wearable devices: smart watches

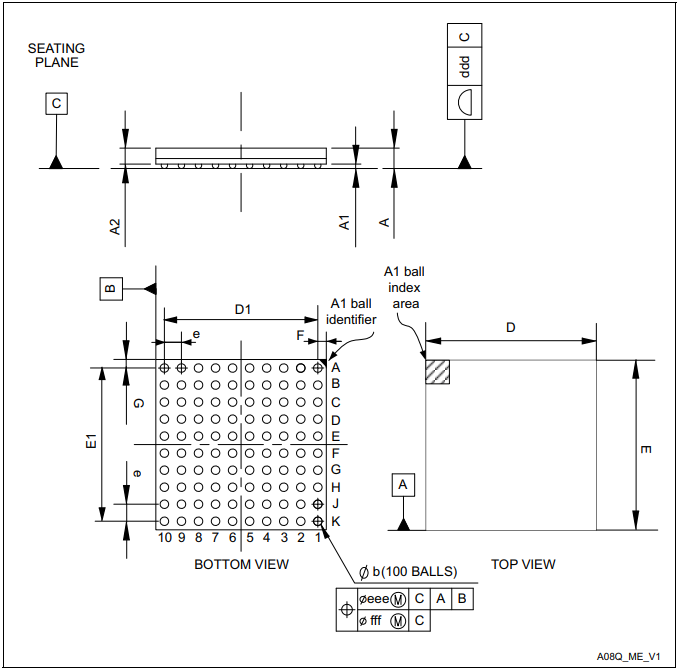

    TFBGA100 package outline


    FAQ
    Q. Are your products original?
    A: Yes, all products are original, new original import is our purpose.
    Q:Which Certificates do you have?
    A:We are ISO 9001:2015 Certified Company and member of ERAI.
    Q:Can you support small quantity order or sample?Is the sample free?
    A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
    Q:How to ship my order? Is it safe?
    A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
    Q:What about the lead time?
    A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
