    32 Bit Wireless Communication Module ESP32-WROOM-32DC WiFi BLE Module RF Transceiver

    Wireless Communication Module ESP32-WROOM-32DC WiFi and BLE Module 32bit RF Transceiver


    Description

    ESP32-WROOM-32DC is a powerful, generic Wi-Fi+BT+BLE MCU module that targets a wide variety of applications,ranging from low-power sensor networks to the most demanding tasks, such as voice encoding, music streaming and MP3 decoding.


    CPU and Internal Memory
    ESP32-D0WD contains a dual-core Xtensa® 32-bit LX6 MCU. The internal memory includes:

    • 448 KB of ROM for booting and core functions.

    • 520 KB of on-chip SRAM for data and instructions.

    • 8 KB of SRAM in RTC, which is called RTC FAST Memory and can be used for data storage; it is accessed by the main CPU during RTC Boot from the Deep-sleep mode.

    • 8 KB of SRAM in RTC, which is called RTC SLOW Memory and can be accessed by the co-processor during the Deep-sleep mode.

    • 1 Kbit of eFuse: 256 bits are used for the system (MAC address and chip configuration) and the remaining 768 bits are reserved for customer applications, including flash encryption and chip-ID.


    Pin Layout


    Peripheral Schematics

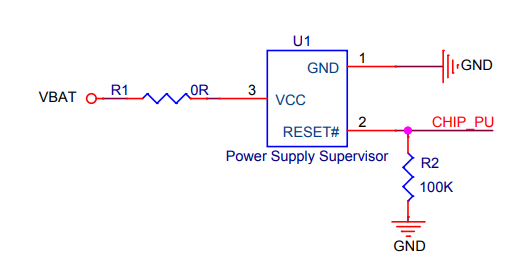

    Reset Circuit
