Tunnel Weatherproof Analog Phone Moisture Resistant With Flashing Beacon

    Buy cheap Tunnel Weatherproof Analog Phone Moisture Resistant With Flashing Beacon from wholesalers

    Buy cheap Tunnel Weatherproof Analog Phone Moisture Resistant With Flashing Beacon from wholesalers
    • Buy cheap Tunnel Weatherproof Analog Phone Moisture Resistant With Flashing Beacon from wholesalers

    Tunnel Weatherproof Analog Phone Moisture Resistant With Flashing Beacon

    Ask Lasest Price
    Brand Name : J&R
    Model Number : JR103-FK-L
    Certification : CE, FCC, RoHS, IP67, ISO9001:2015
    Price : Reconsideration
    Payment Terms : L/C, T/T
    Supply Ability : 3000 sets per month
    Delivery Time : 3-7 working days
    • Product Details
    • Company Profile

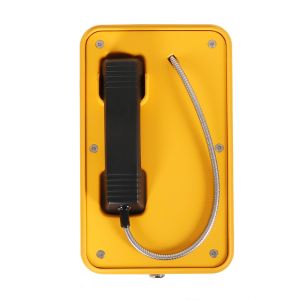

    Tunnel Weatherproof Analog Phone Moisture Resistant With Flashing Beacon

    Moisture Resistant Analog Tunnel Telephone with Flashing Beacon


    The weatherproof telephone is an emergency phone that specifically addresses the harsh environment of the outdoor industry.
    weatherproof telephone for tunnel purpose made of aluminum alloy material by dies casting. The telephone is rugged and durable.


    A special sealing design can ensure a complete waterproof grade up to IP67. weatherproof, dustproof, and moisture-resistant. The weatherproof telephone is widely used in tunnels and outdoor. Most metro and high-speed rail projects need to install IP67 telephones for emergency communication. Also, the expressway and power plant need weatherproof phones. Marines need moisture-resistant telephones. The weatherproof telephone is widely used in tunnels and outdoor.


    Most metro and high-speed rail projects need to install IP66 telephones for emergency communication. The weatherproof telephone uses aluminum alloy as the raw material for the weatherproof enclosure, and the exterior is strong and has an explosion-proof effect. It is available in both VoIP and analog versions and is customizable.


    Main Features:

    • Standard Analogue phone
    • Aluminum alloy die-casting body
    • Vandal resistant handset and armored cord
    • Weather proof protection to IP67
    • Full keypad with memory, 0-9 buttons can be programmed as speed dial button
    • LR button for last number redial
    • R for flash recall
    • M for muting
    • With an LED lamp fixed on the top, when there is an incoming call, the lamp will flash

    Technical Specification

    Analogue Version
    Power SupplyFrom the analogue telephone network
    Supply Voltage24 VDC to 65 VDC
    Supply Current20 mA DC to 100 mA DC
    Ringer Volume- 80dB(A) at a distance of 1 m
    - 110dB(A) at a distance of 1 m (for external horn speaker)
    Dialing MethodDTMF mode in accordance with ITU-T recommendation Q.23.

    Ambient conditions
    Protection typeIP 66 as per EN60529
    Operating temperature-40°C to +70°C
    Storage temperature-45°C to +85°C


    Applications

    In addition to normal office telephones, and home phones; The outdoors, industrial plants, tunnels, construction sites, and harsh environments, also need to use special requirements of a number of telephone communication. The weatherproof telephone is designed for outdoor by J&R. An outer metal casting, sealing, and waterproof rating of IP67.



    Package
    Unit Size: 339*246*109 mm (H *W * D)
    Carton Dimension: 200 * 300 *440 mm (H * W * D)
    Packaging materials: pearl cotton, carton
    Net Weight: 5 KG
    Gross weight: 6 KG
