Tungsten Carbide Twist Drill Bits,3XD Smooth Drilling Tool With
Shank Chamfering
Application Field:
Tungsten Carbide 3XD Twist Drill Bits mainly used for deep hole machining. We DROW specialize Twist Drill Bits for tens of years which can well adapt to various hole machining
demands. With our strong R&D power and advanced equipment , we
can always offer you professional and reasonable solutions to meet
your requirement as well as lower your cost.
Tools made by us can well achieve efficiency machining and long
tool lifespan.Besides, with different advanced nano coating, this
tool achieves high smooth machining surface and wear resistance.
Recommended Parameters for Tungsten Carbide Drill Cutting
Blade Diameter
D | Cutting material
(Hardness) | Linear velocity Vc m/min | feed F
mm/min | vSingle edge
cutting quantity
mm/rpm | speed S
rpm/min |
| D<4.0 | >HRC58° | Vc=20m/min | 40-60 | 0.005-0.010 | S=Vc*1000/D/3.14 |
| ≥HRC50° | Vc=20m/min | 50-70 | 0.008-0.012 |
| ≥HRC35 | Vc=30m/min | 100-150 | 0.010-0.015 |
| Stainless steel | Vc=30m/min | 100-150 | 0.010-0.015 |
| Aluminum alloy | Vc=35-65m/min | 150-300 | 0.025-0.050 |
| non-metallic | Vc=40-80m/min | 150-300 | 0.025-0.050 |
| D>4.0 | >HRC58° | Vc=30m/min | 60-100 | 0.025-0.040 |
| >HRC50° | Vc=35m/min | 80-140 | 0.030-0.050 |
| >HRC35° | Vc=50m/min | 150-300 | 0.040-0.080 |
| Stainless steel | Vc=40m/min | 100-250 | 0.035-0.080 |
| Aluminum alloy | Vc=100-150m/min | 400-800 | 0.050-0.100 |
| non-metallic | Vc=150-200m/min | 550-800 | 0.125-0.180 |

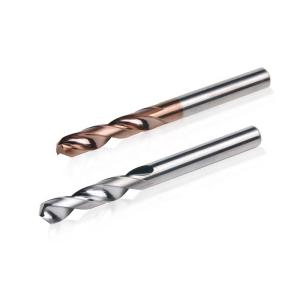

Product Details--- 3XD Carbide Drill Bits
- Tool Material : 100% virgin tungsten carbide.
- Usage: Drilling.Deep hole machining.
- Size: 3XD
- Accuracy: ±0.005mm
- Applicable materials: Uncoated tools for aluminum,non-ferrous
metals.non-metallic.Coated tools for carbon steel,alloy steel,mold
steel,other steel,ductile iron etc.
- Shank type:Milling shank, Universal Milling Shank.
- Customization:Please attach CAD drawings/3D drawings for your
inquiry, thank you.
Summary product information as below:
| Brand Name: | Drow |
| Model Number: | 3XD Metric Chamfered Carbide Drill Bits |
| Customized support: | OEM, ODM. |
| Standard: | ISO |
| Product type: | Solid Carbide Drill Bits |
| Material: | Tungsten Carbide,100% new Material |
| Coating: | To be defined per your different demands and application |
| Hardness: | HRA 91~93.5 |
| Precision: | ±0.005mm |
| Point Angle: | 118° |
| Diameter: | 0.50~12.0mm |
| Size: | 3XD |
| Surface Finish: | High Temp/Hardness AlTiN, Bright(Uncoated) |
| Shank type | Milling shank, Universal Milling Shank |
| Usage: | Deep hole machining |
| Applicable materials(Uncoated tools): | aluminum,non-ferrous metals.non-metallic |
| Applicable materials(Coated tools): | carbon steel,alloy steel,mold steel,other steel,ductile iron |
| Compatiable Machine | CNC lathes, centering machines, cutter arranging machine skateboard
lathes, turret lathes and other longitudinal lathes |
Product Features:
1.Special groove design:High-speed feed,high precision,suitable for difficult machining
conditions such as lathe machining that is easy to block.
2.Hole wall high finish: Grinded with new fine particle tungsten steel bar smooth and
sharp,not easy to stick to the knife,with high wear resistance and
strength.
3.Chamfering design:The shank chamfering design makes it easier to install the chunk.
4.Unique edge treatment:Using nano technology and advanced grinding technology, the cutting
edge of the drills sharper than before,with less cutting force,
reducing the probability of breaking the drill and improving the
quality of the hole wall.
Product Specification:
| 3XD Product parameters | unit(mm) | Spacing 0.05mm on stock |
| Model NO. | Diameter(D1) | Channel length(L2) | Full length(L1) | Shank diameter(D) |
| FS-PT/PC-(050-055) | 0.50-0.55 | 4 | 50 | 4 |
| FS-PT/PC-(060-095) | 0.60-0.95 | 5 | 50 | 4 |
| FS-PT/PC-(100-150) | 1.00-1.50 | 6 | 50 | 4 |
| FS-PT/PC-(135-175) | 1.35-1.75 | 8 | 50 | 4 |
| FS-PT/PC-(180-195) | 1.80-1.95 | 9 | 50 | 4 |
| FS-PT/PC-(200-225) | 2.00-2.25 | 10 | 50 | 4 |
| FS-PT/PC-(230-255) | 2.30-2.35 | 12 | 50 | 4 |
| FS-PT/PC-(260-295) | 2.60-2.95 | 14 | 50 | 4 |
| FS-PT/PC-(300-355) | 3.00-3.55 | 16 | 50 | 4 |
| FS-PT/PC-(360-400) | 3.60-4.00 | 18 | 50 | 4 |
| FS-PT/PC-(405-450) | 4.05-4.50 | 18 | 50 | 5 |
| FS-PT/PC-(455-500) | 4.55-5.00 | 20 | 50 | 5 |
| FS-PT/PC-(505-600) | 5.05-6.00 | 22 | 50 | 6 |
| FS-PT/PC-(605-700) | 6.05-7.00 | 25 | 60 | 8 |
| FS-PT/PC-(705-800) | 6.05-8.00 | 32 | 60 | 8 |
| FS-PT/PC-(805-1000) | 8.05-10.00 | 40 | 75 | 10 |
| FS-PT/PC-(1005-1100) | 10.05-11.00 | 42 | 75 | 12 |
| FS-PT/PC-(1105-1200) | 11.05-12.00 | 48 | 80 | 12 |
