Oil & Gas Christmas Tree Surface Test Tree API Flowhead For Surface Well Testing

API Oil & Gas Well Surface Test Tree / Flowhead For Surface Well Testing

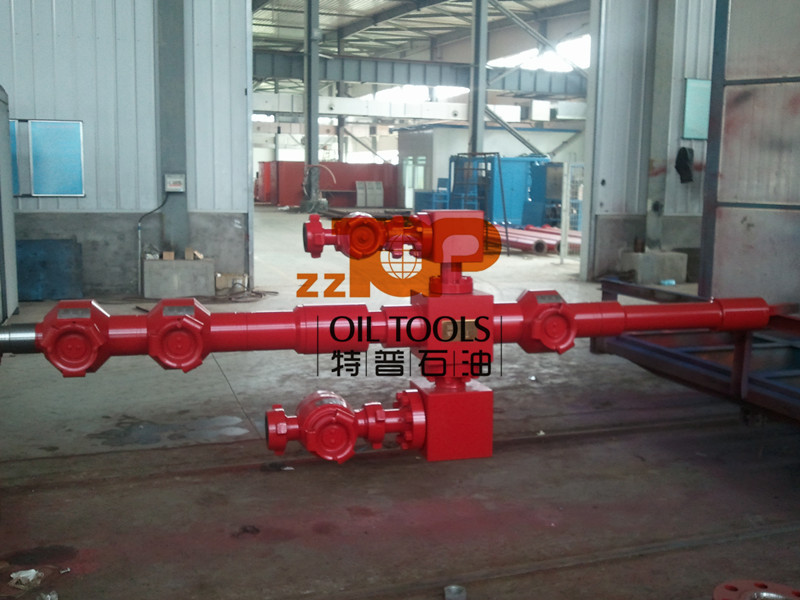

The Flowhead is the Surface test tree, which is the primary device for controlling the well and allowing the introduction of wireline. The surface test tree is located on the top of the well and mainly used for controlling the surface pressure and fluid & gas movement during drill stem testing service. The basic designed Flowhead includes four valves-Master,Swab,Kill and flowline(Hydraulic actuator). The assembly also has swivel to allow pipe rotation for manipulating downhole tools(DST String) without turning the test head.

The standard valve configuration of the flowhead is four valves arranged in a cross shape. The bottom valve is a manual valve and is commonly known as the Master Valve and is the valve normally used to isolate the well bore from the surface process facilities. The top valve, which is also a manual valve, is known as the Swab valve and is used to allow the introduction of wireline tool strings into the well-bore. The two side valves are called the Flow-wing valve and the Kill-wing valve. The Flow-wing valve is normally a hydraulically actuated fail-safe close valve, which is activated by means of a control panel, or in an emergency situation, remotely by the ESD system. The kill-wing valve is normally a manual valve and is used to allow the introduction of kill fluids to the well. It is also used during pressure testing to allow the cement unit to pressure up the surface test equipment, across the flowhead.

Technical Parameter of Surface test tree / Flowhead

ZZ TOP Oil Tools Co., Ltd located in XI’AN City in China, we are in full service on design, production and supply of oilfield downhole tools and Wellhead Equipment.

Over more than 10 years, we become a fast growing organization, now our two sub-factories, equipped with CNC lathes, Miller, deep-hole drilling &boring machine and other advanced machines, have enough production capacity to meet the customers’ requirement. And we build a professional & strong team including technical, sales, logistic and leading management department, which make our company success of manufacturing and providing cost-effective downhole tools and create added value for customers around the world.

Now our tools are supplied to worldwide and enjoy the good reputation.We always focus on providing the our clients with highly efficient & expertized service and approach each enquiry with meticulous attention to technical specifications and insist on “Traceability, Serialization” for each tools. We will keep innovating and providing more durable products and reliable service for worldwide customers.
