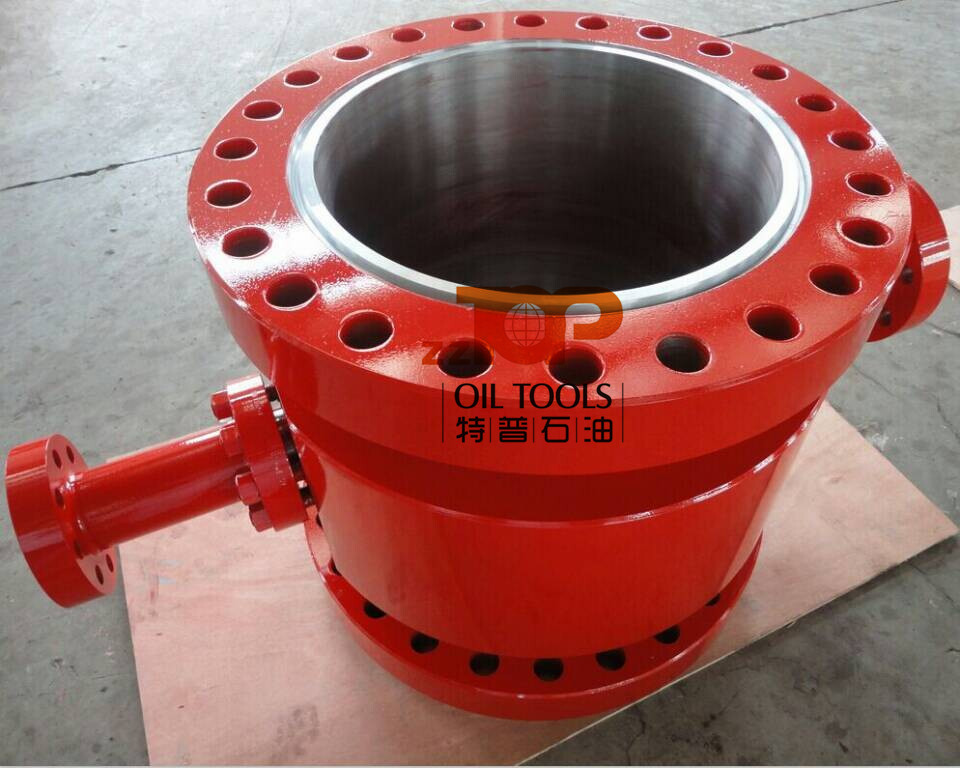

    AISI 4130 6A Casing Spool Wellhead For Wellhead Casing Head Assembly

    API 6A Wellhead Casing Spool For Wellhead Casing Head Assembly


    Casing spool is well control equipment connected above the Casing Head for oil & gas well drilling operation. The casing spool is designed and manufactured according to API 6A Specification. The casing spool provides a bore in the top bowl for the casing hanger seals that allows the suspension of production casing. In lower bowl, it provides a secondary seal for the previous casing string (intermediate casing) against the counterbore.

    Specification of Casing Spool


    Bottom flangeTop flange
    SizeW.P. (psi)SizeW.P. (psi)A mm (in)B mm (in)C mm (in)
    11"2, 00011"2, 000500 (19.69)230 (9.06)280 (11.02)
    3, 000500 (19.69)230 (9.06)280 (11.02)
    3, 0003, 000500 (19.69)230 (9.06)280 (11.02)
    5, 000500 (19.69)230 (9.06)280 (11.02)
    5, 0005, 000650 (25.59)230 (9.06)280 (11.02)
    10, 000650 (25.59)230 (9.06)280 (11.02)
    13-5/8"2, 00011"2, 000480 (18.90)230 (9.06)280 (11.02)
    3, 000560 (22.47)230 (9.06)280 (11.02)
    5, 000660 (25.98)230 (9.06)280 (11.02)
    13-5/8"2, 000580 (22.83)230 (9.06)350 (13.80)
    3, 000580 (22.83)230 (9.06)350 (13.80)
    5, 000600 (23.62)230 (9.06)350 (13.80)
    3, 000113, 000560 (22.47)230 (9.06)280 (11.02)
    5, 000660 (25.98)230 (9.06)280 (11.02)
    13-5/8"3, 000660 (25.98)230 (9.06)350 (13.80)
    5, 000660 (25.98)230 (9.06)350 (13.80)
    13-5/8"5, 000115, 000660 (25.98)230 (9.06)280 (11.02)
    10, 000725 (28.54)230 (9.06)280 (11.02)
    15, 000725 (28.54)230 (9.06)280 (11.02)
    13-5/8"5, 000725 (28.54)230 (9.06)350 (13.80)
    5, 000725 (28.54)259 (10.20)350 (13.80)
    10, 000740 (29.13)230 (9.06)350 (13.80)
    15, 000750 (29.53)230 (9.06)350 (13.80)
    10, 0001110, 000725 (28.54)230 (9.06)280 (11.02)
    15, 000725 (28.54)230 (9.06)280 (11.02)
    13-5/8"10, 000740 (29.13)230 (9.06)350 (13.80)
    15, 000800 (31.50)230 (9.06)350 (13.80)
    16-3/4"2, 000112, 000580 (22.83)230 (9.06)280 (11.02)
    3, 000580 (22.83)230 (9.06)280 (11.02)
    13-5/8"2, 000580 (22.83)304 (11.97)350 (13.80)
    3, 000600 (23.62)304 (11.97)350 (13.80)
    5, 000620304350
