Tin Plated Sheet Side Welding Machine 10KVA Automatic Seam Welder

    Buy cheap Tin Plated Sheet Side Welding Machine 10KVA Automatic Seam Welder from wholesalers

    Buy cheap Tin Plated Sheet Side Welding Machine 10KVA Automatic Seam Welder from wholesalers
    • Buy cheap Tin Plated Sheet Side Welding Machine 10KVA Automatic Seam Welder from wholesalers

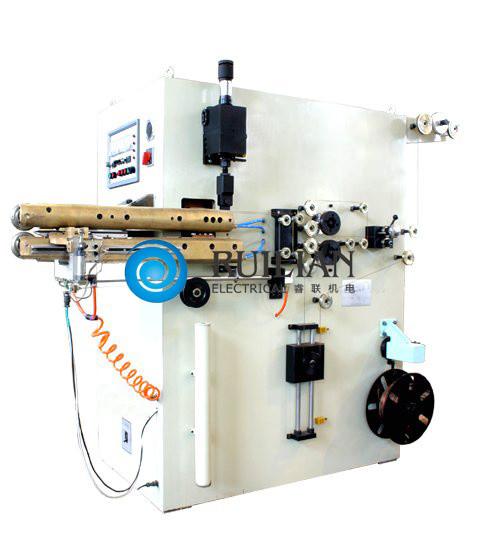

    Tin Plated Sheet Side Welding Machine 10KVA Automatic Seam Welder

    Ask Lasest Price
    Brand Name : RUILIAN
    Model Number : FN-3C
    Price : Negotiable
    • Product Details
    • Company Profile

    Tin Plated Sheet Side Welding Machine 10KVA Automatic Seam Welder

    Side Seam Welding Machine Electric water heater shell seam welding machine


    welding diameterØ100~Ø1000mm
    Types of Welded Sheets

    Tin Plated Sheet

    Galvanized sheet steel

    Low carbon sheet steel

    Stainless steel sheet

    Welding height≤400mm
    Weld thicknessLow carbon sheet steel:0.2~0.35mm
     Galvanized sheet steel:0.2~0.35mm
     Stainless steel sheet:0.2~0.35mm
     Tin Plated Sheet:0.2~0.35mm
    Welding beat3~5/min
    Welding speed3~6m/min
    Lapping capacity3mm
    Welding copper wire diameterØ1.5mm
    Cooling water flow rate0.4Mpa 8.5L/min
    Compressed air0.8Mpa 600L/min ≤25°C
    Welding power10KVA
    Net weight1.5T

    Side Seam Welding Machine Electric water heater shell seam welding machine


    The electric heater has a welding machine

    Resistance welding

    Seam welding

    Lron barrel welding

    Sheet metal welding

    Home appliance manufacturing


    Product of Side Seam Welding Machine Electric water heater shell seam welding machine


    Electric water heater shell seam welding machine

    FN-3C semi-automatic straight seam welding machine is a straight seam resistance welding machine specially developed for small enterprises in the early stage or economically underdeveloped areas. The welding machine can be adapted to various operating occasions required by resistance welding, and can fully meet the seam welding needs of the industry in the initial stage, and is suitable for enterprises with small investment in the early stage.


    The equipment man-machine interface control, welding control unit and other aspects are all independently developed and designed, including the welding pressure and other important welding elements to fully realize the digital display of the man-machine interface. And according to the welding characteristics of high carbon content steel sheets in the home appliance industry, three unique welding curves are designed in welding control, so that the professional needs of sheet welding can be more reliably and efficiently completed.
