GARLOCK Replacement PTFE Seal Kit Rubber Diaphragm Dust Removal
Diaphragm
Rubber cloth diaphragm:
In the rubber diaphragm crowd, people are accustomed to refer to
all diaphragms as cloth diaphragms. Indeed, most of the rubber
diaphragms now have cloth interlayers, but there are also a small
number of diaphragms that are purely rubber-like. The pure rubber
diaphragm also has its own advantages compared with the rubber
cloth cloth diaphragm. For example, in terms of processing
technology, the pure rubber diaphragm can be thinner than the
rubber cloth cloth diaphragm. Under some special environmental
requirements, it can only be produced without adding cloth, and the
disadvantage is itself In the case of already very thin, if the
ambient frequency or pressure is high, the service life of the
diaphragm may be affected. The advantages of the rubber cloth
diaphragm are obvious. Although the pure rubber diaphragm can be
processed thinner, the rubber cloth diaphragm in the modern
development, because of the upgrading and progress of the
technology, like the rubber cloth cloth type rubber film. The
thickness of the film can also be controlled at 1.2mm, and the
1.2mm rubber cloth diaphragm is no problem in most industrial
environments.
Features:
Fabrication technics of textile makes the product tear resistance
stronger
High quality raw materials ensure the excellent performance of the
material itself
| Product Materials | NBR,NR |
| Operating Temperature | -20℃~80℃ |
| Service Life | ≥1000000 times |
| Usage Scenario | Bag filter devices /precipitator equipment |

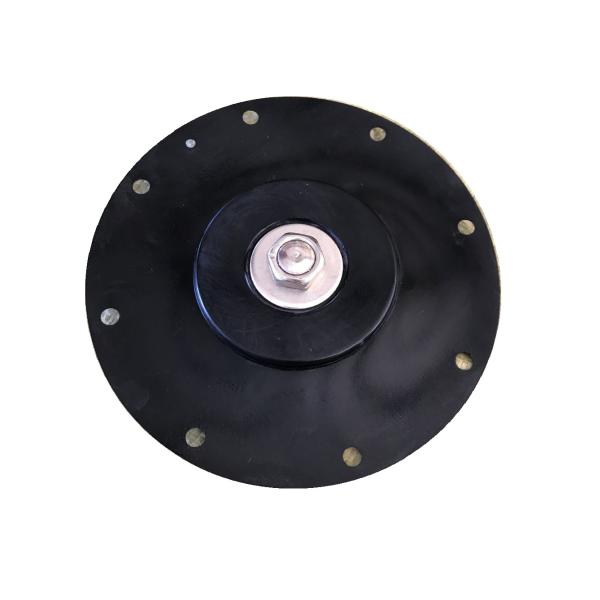

Brief introduction of electromagnetic pulse valve diaphragm:
The electromagnetic pulse valve diaphragm is a whole piece of
rubber diaphragm installed with a riveting head used to block the
compressed air pipeline or the air outlet of the blocking valve, a
venting unloading hole and a bolt hole for fixed support around it.
It is the key control part in the electromagnetic pulse valve.
Dust collector supporting diaphragm ZBSZCA Material:
Rubber cloth or pure rubber can be used.
characteristic:
Double-sided pressure bearing, double-sided equal pressure surface,
low magnetic hysteresis, no stick-slip effect.
Function:
Pump function, control and measurement function, regulation
function.
Application domain:
Pump valve, automobile industry, pneumatic components, gas
equipment, electronic industry, electrical equipment, pneumatic
hydraulic industry, etc.
Diaphragm work description:
The operating temperature range and pressure range of the diaphragm
itself depends on the type of rubber, fabric and structure. The
diaphragm can work under the conditions of -50~100 degrees Celsius
and 0.4~0.8Mpa; the fluororubber and silicone rubber diaphragms can
work under the conditions of -80~232 degrees Celsius. Chlorohydrin
rubber diaphragm can work under the pressure of 0.4~0.8Mpa, has
good air tightness, anti-aging, and its life is equal to that of
engine overhaul.
